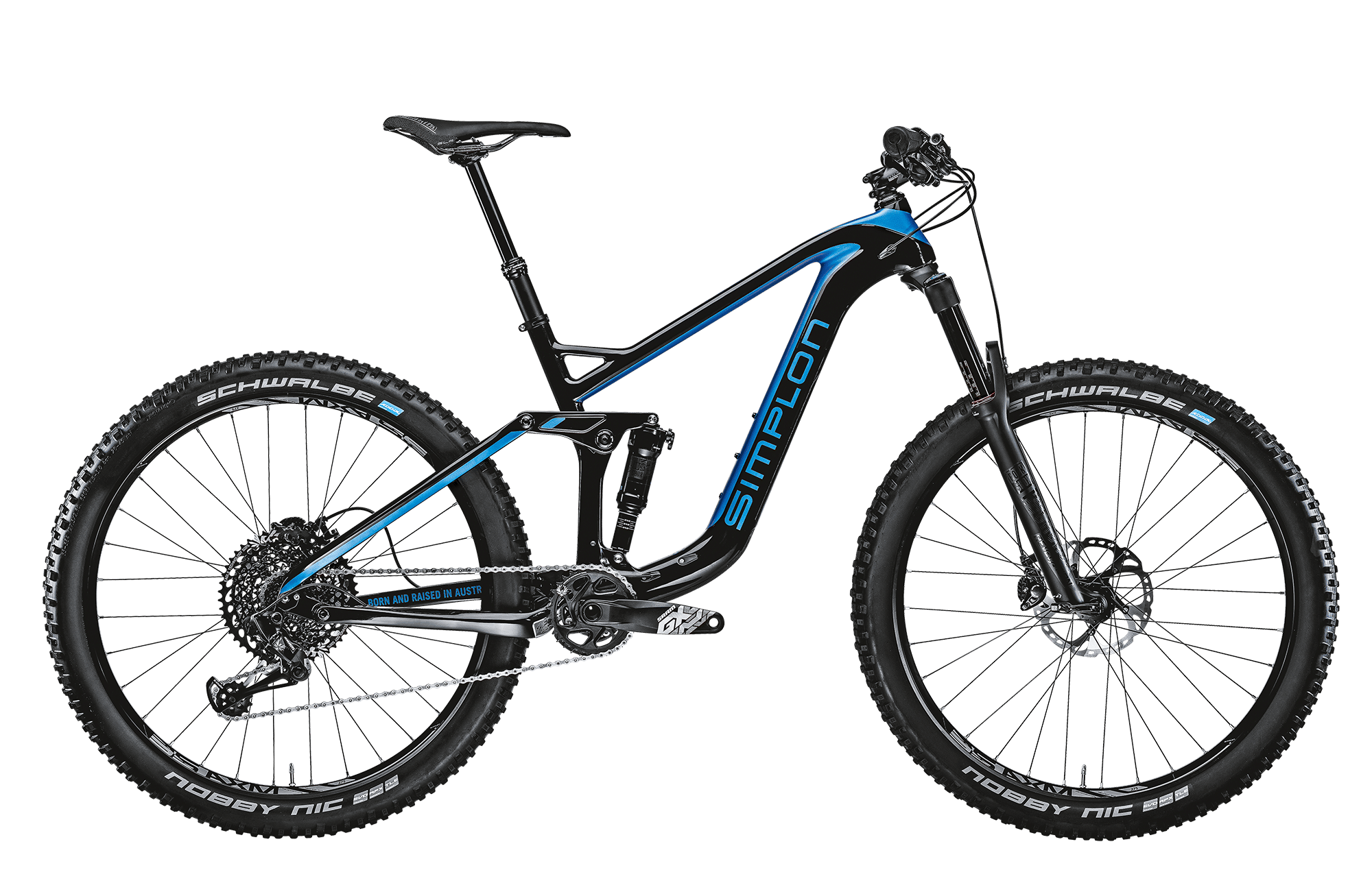

2018 Simplon Rapcon 140 geometry
Full frame geometry for the 2018 Simplon Rapcon 140, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 582 | 399 | 75.3 | 66.8 | 90 | 552 | 385 | 747 | 1129 | 51 |
| M | 591 | 437 | 75.3 | 66.8 | 100 | 592 | 435 | 747 | 1170 | 51 |
| L | 605 | 458 | 75.3 | 66.8 | 115 | 617 | 485 | 750 | 1197 | 51 |
| XL | 619 | 475 | 75.3 | 66.8 | 130 | 637 | 535 | 794 | 1220 | 51 |
All measurements in millimetres unless marked (°) for angles.
