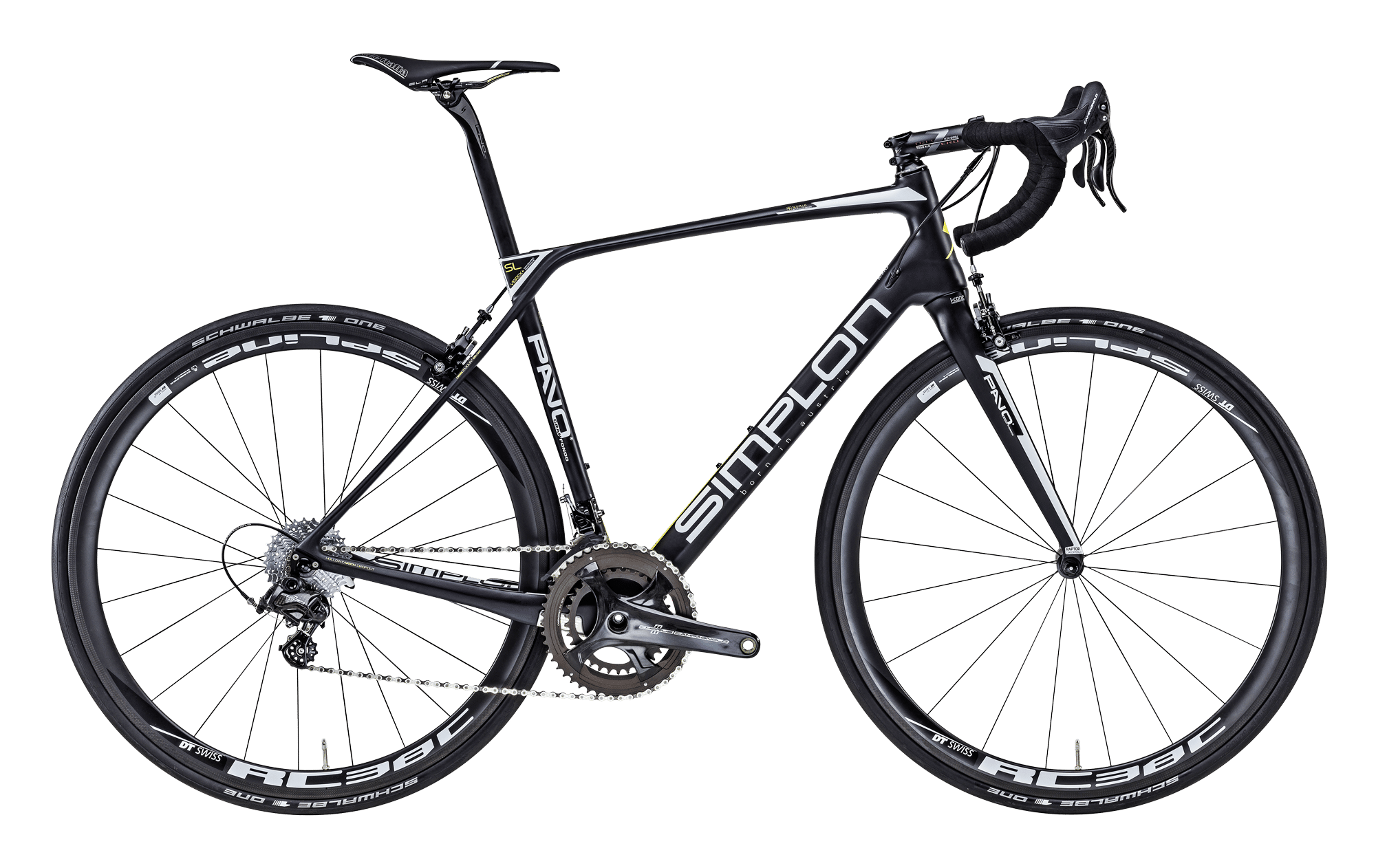

2018 Simplon Pavo Granfondo SL geometry
Full frame geometry for the 2018 Simplon Pavo Granfondo SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 552 | 372 | 75 | 72.5 | 125 | 520 | 440 | 719 | 75 | 415 | 986 | 48 |
| 52 | 571 | 377 | 75 | 72.5 | 145 | 530 | 470 | 747 | 75 | 415 | 992 | 48 |
| 55 | 590 | 385 | 73 | 72.5 | 165 | 565 | 500 | 774 | 75 | 415 | 1006 | 48 |
| 58 | 609 | 388 | 73 | 72.5 | 185 | 575 | 530 | 801 | 75 | 415 | 1011 | 48 |
All measurements in millimetres unless marked (°) for angles.
