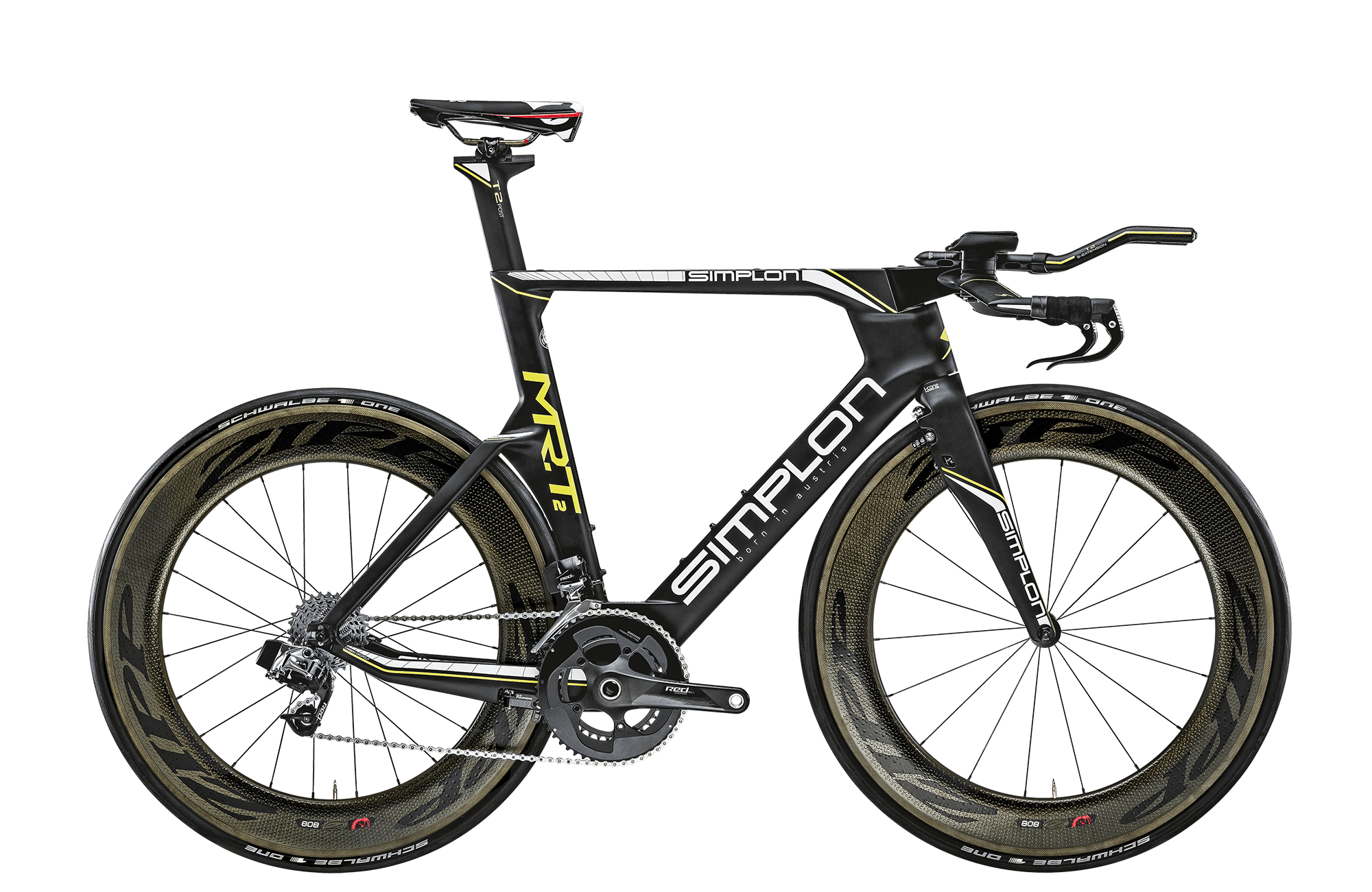

2018 Simplon MR T2 geometry
Full frame geometry for the 2018 Simplon MR T2, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 480 | 374 | 72.5 | 64 | 485 | 505 | 759 | 75 | 400 | 943 | 45 |
| S | 500 | 395 | 73 | 83 | 510 | 570 | 821 | 75 | 400 | 965 | 45 |
| M | 519 | 413 | 73 | 103 | 530 | 590 | 841 | 75 | 400 | 989 | 45 |
| L | 538 | 430 | 73 | 123 | 554 | 610 | 860 | 75 | 400 | 1014 | 45 |
All measurements in millimetres unless marked (°) for angles.
