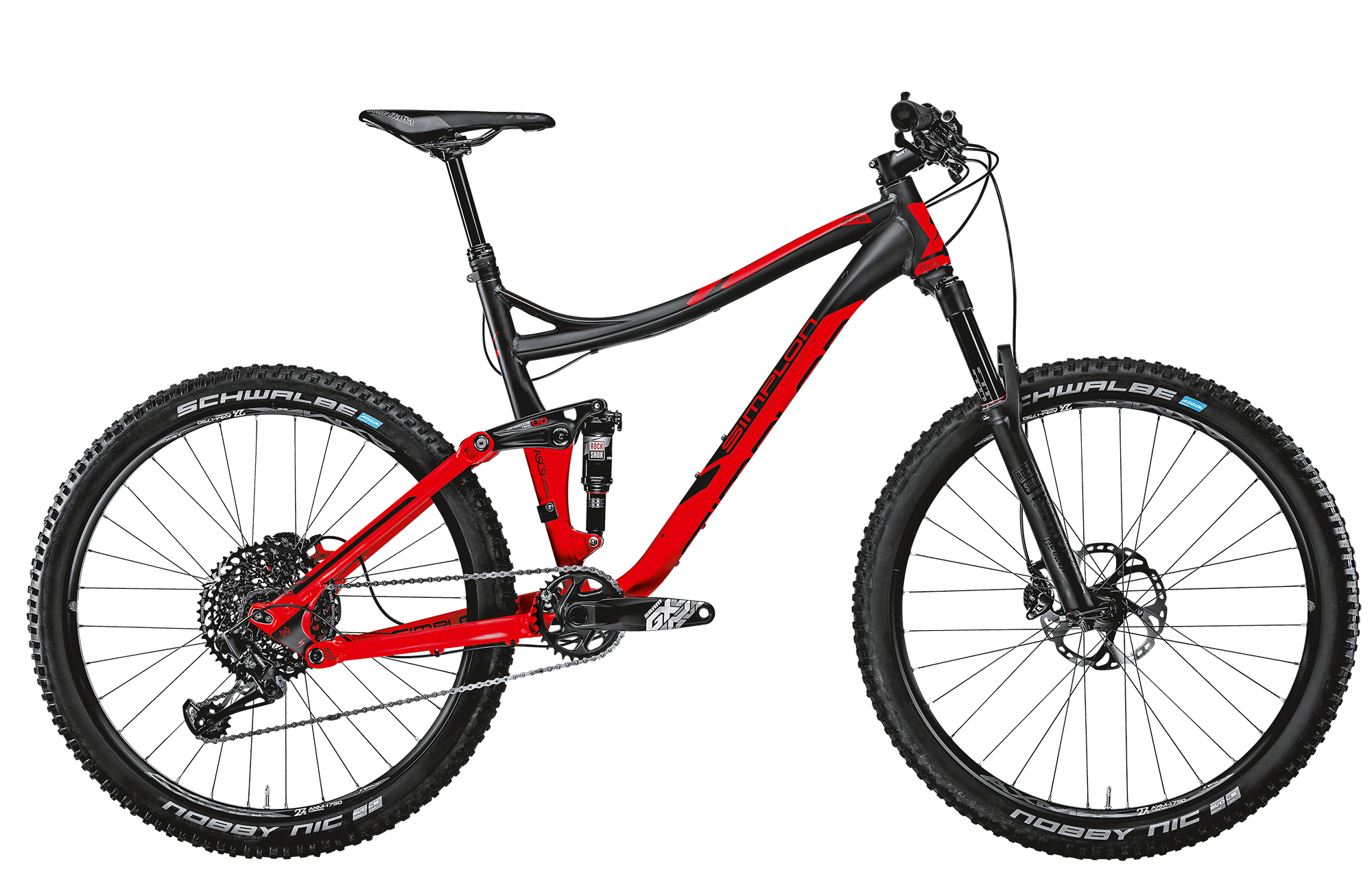

2018 Simplon Kibo 275 ALU geometry
Full frame geometry for the 2018 Simplon Kibo 275 ALU, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 38 | 562 | 407 | 73.5 | 69 | 100 | 560 | 380 | 741 | 10 | 445 | 1110 | 42 |
| 45 | 576 | 429 | 73.5 | 69 | 115 | 585 | 450 | 736 | 10 | 445 | 1128 | 42 |
| 50 | 590 | 450 | 73.5 | 69 | 130 | 610 | 500 | 766 | 10 | 445 | 1153 | 42 |
| 55 | 608 | 460 | 73.5 | 69 | 150 | 640 | 550 | 805 | 10 | 445 | 1186 | 42 |
All measurements in millimetres unless marked (°) for angles.
