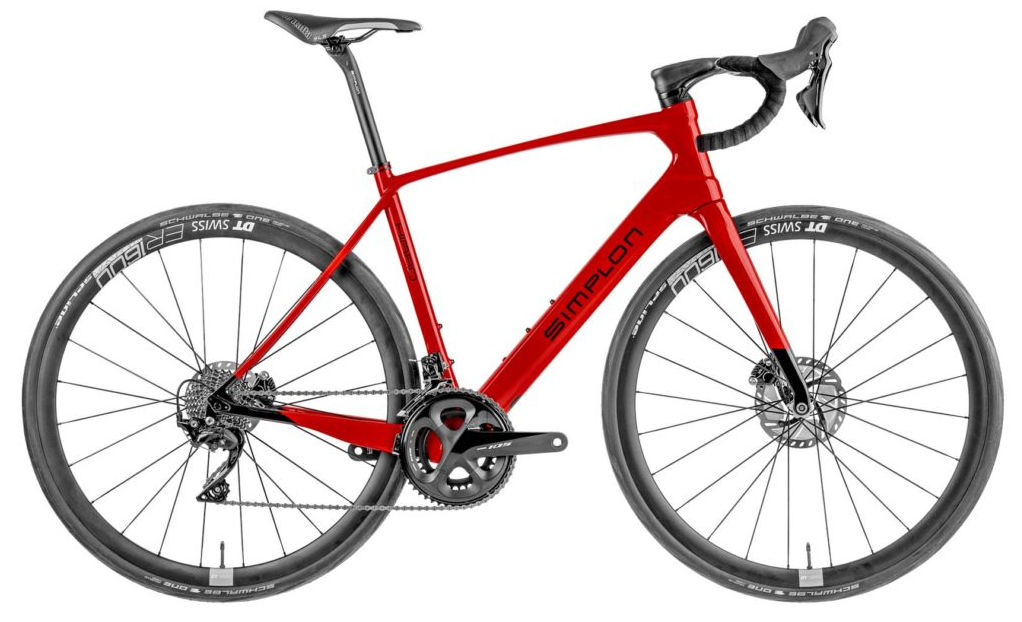

2019 Simplon Kiaro Disc geometry
Full frame geometry for the 2019 Simplon Kiaro Disc, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 522 | 352 | 73 | 69 | 120 | 500 | 420 | 741 | 74 | 582 | 410 | 981 | 50 |
| 49 | 542 | 361 | 73 | 70.2 | 136 | 527 | 450 | 766 | 74 | 586 | 410 | 985 | 50 |
| 52 | 564 | 370 | 73 | 72.5 | 151 | 542 | 480 | 793 | 74 | 581 | 410 | 980 | 50 |
| 55 | 588 | 376 | 73 | 72.5 | 176 | 556 | 500 | 815 | 74 | 595 | 410 | 994 | 50 |
| 58 | 608 | 387 | 73 | 72.5 | 195 | 573 | 520 | 836 | 74 | 611 | 410 | 1010 | 50 |
| 61 | 630 | 396 | 73 | 72.5 | 216 | 588 | 550 | 863 | 74 | 626 | 410 | 1025 | 50 |
All measurements in millimetres unless marked (°) for angles.
