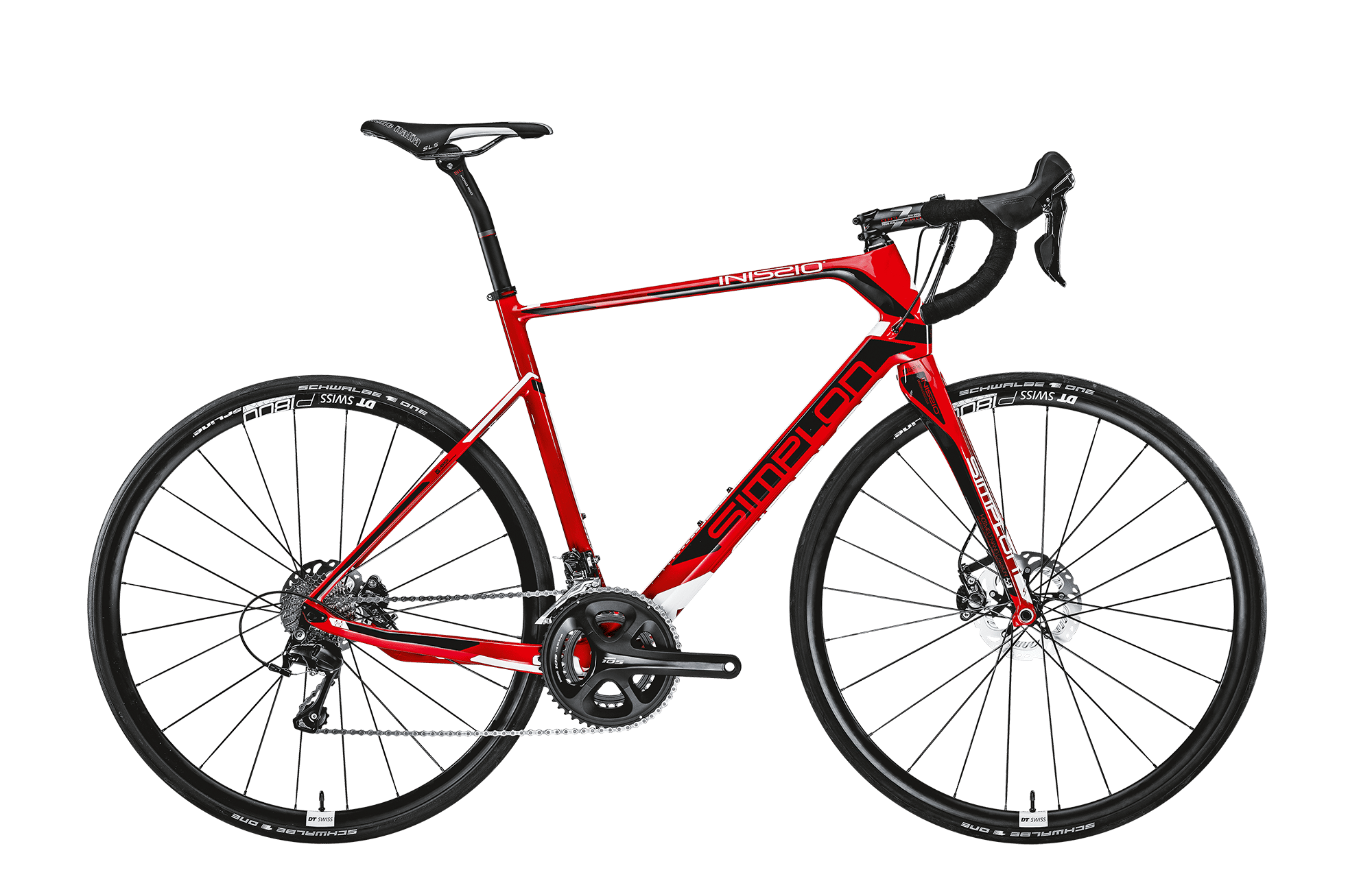

2018 Simplon Inissio Granfondo geometry
Full frame geometry for the 2018 Simplon Inissio Granfondo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 529 | 378 | 74.5 | 72 | 110 | 525 | 470 | 67 | 425 | 995 | 45 |
| 51 | 552 | 387 | 74.5 | 72 | 135 | 540 | 510 | 67 | 425 | 1012 | 45 |
| 55 | 583 | 388 | 74 | 72.5 | 165 | 555 | 550 | 67 | 425 | 1017 | 45 |
| 58 | 618 | 397 | 73.5 | 73 | 200 | 580 | 580 | 67 | 425 | 1032 | 45 |
| 62 | 642 | 405 | 73.5 | 73 | 230 | 595 | 620 | 67 | 425 | 1047 | 45 |
All measurements in millimetres unless marked (°) for angles.
