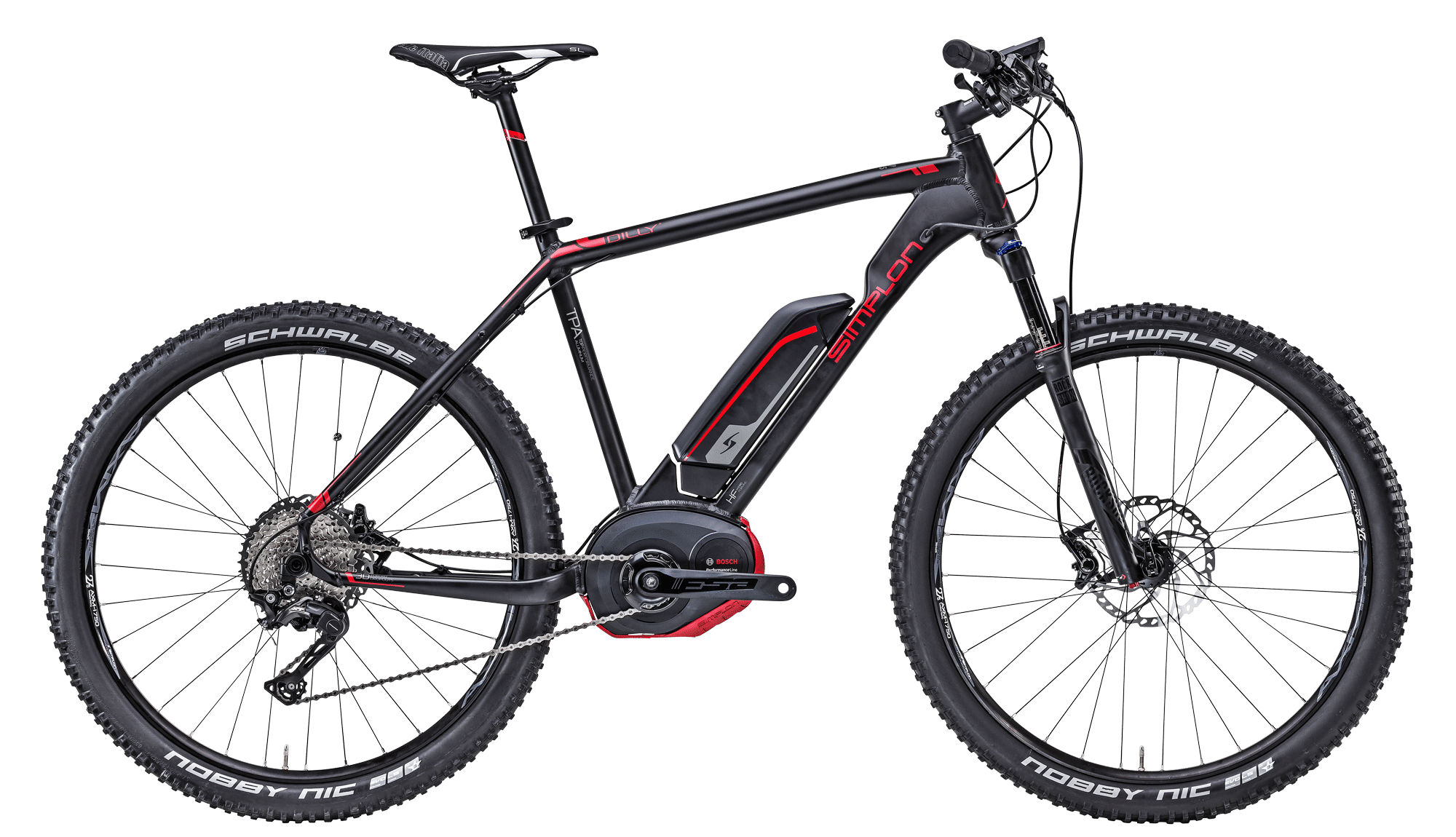

2018 Simplon E-Dilly275 geometry
Full frame geometry for the 2018 Simplon E-Dilly275, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 569 | 371 | 72.5 | 70.5 | 110 | 550 | 400 | 749 | 20 | 470 | 1079 | 42 |
| 45 | 569 | 406 | 72.5 | 70.5 | 110 | 585 | 450 | 781 | 20 | 470 | 1114 | 42 |
| 50 | 588 | 420 | 72.5 | 70.5 | 130 | 610 | 500 | 817 | 20 | 470 | 1135 | 42 |
| 55 | 606 | 444 | 72.5 | 70.5 | 150 | 635 | 550 | 858 | 20 | 470 | 1166 | 42 |
All measurements in millimetres unless marked (°) for angles.
