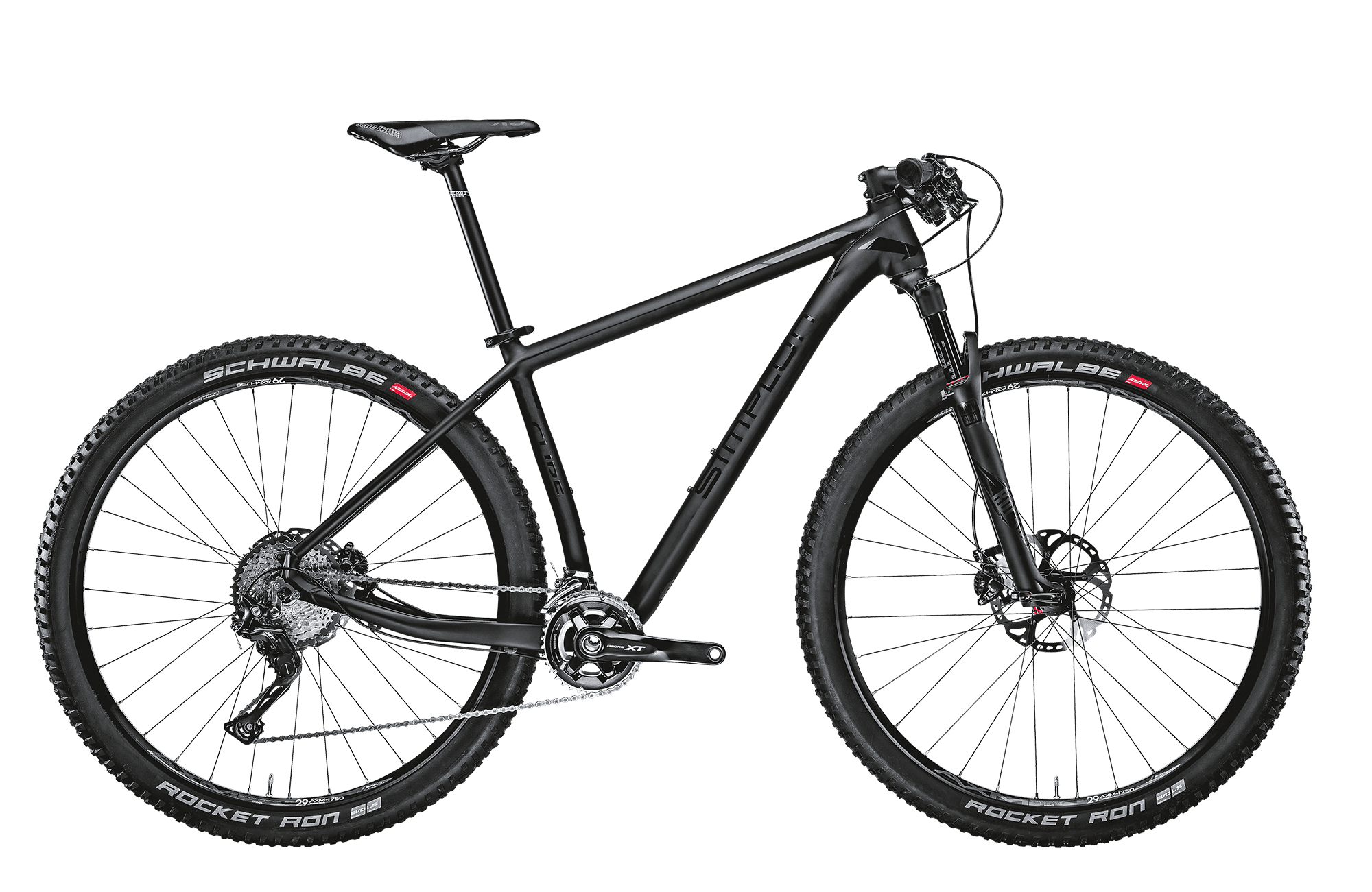

2018 Simplon Cure 29 geometry
Full frame geometry for the 2018 Simplon Cure 29, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 629 | 393 | 73 | 70.5 | 100 | 585 | 410 | 749 | 70 | 440 | 1074 | 46 |
| L | 637 | 416 | 73 | 70.5 | 110 | 610 | 460 | 780 | 70 | 440 | 1099 | 46 |
| XL | 647 | 431 | 73 | 70.5 | 120 | 630 | 510 | 812 | 70 | 440 | 1120 | 46 |
| XXL | 657 | 449 | 73 | 70.5 | 130 | 650 | 560 | 847 | 70 | 440 | 1140 | 46 |
All measurements in millimetres unless marked (°) for angles.
