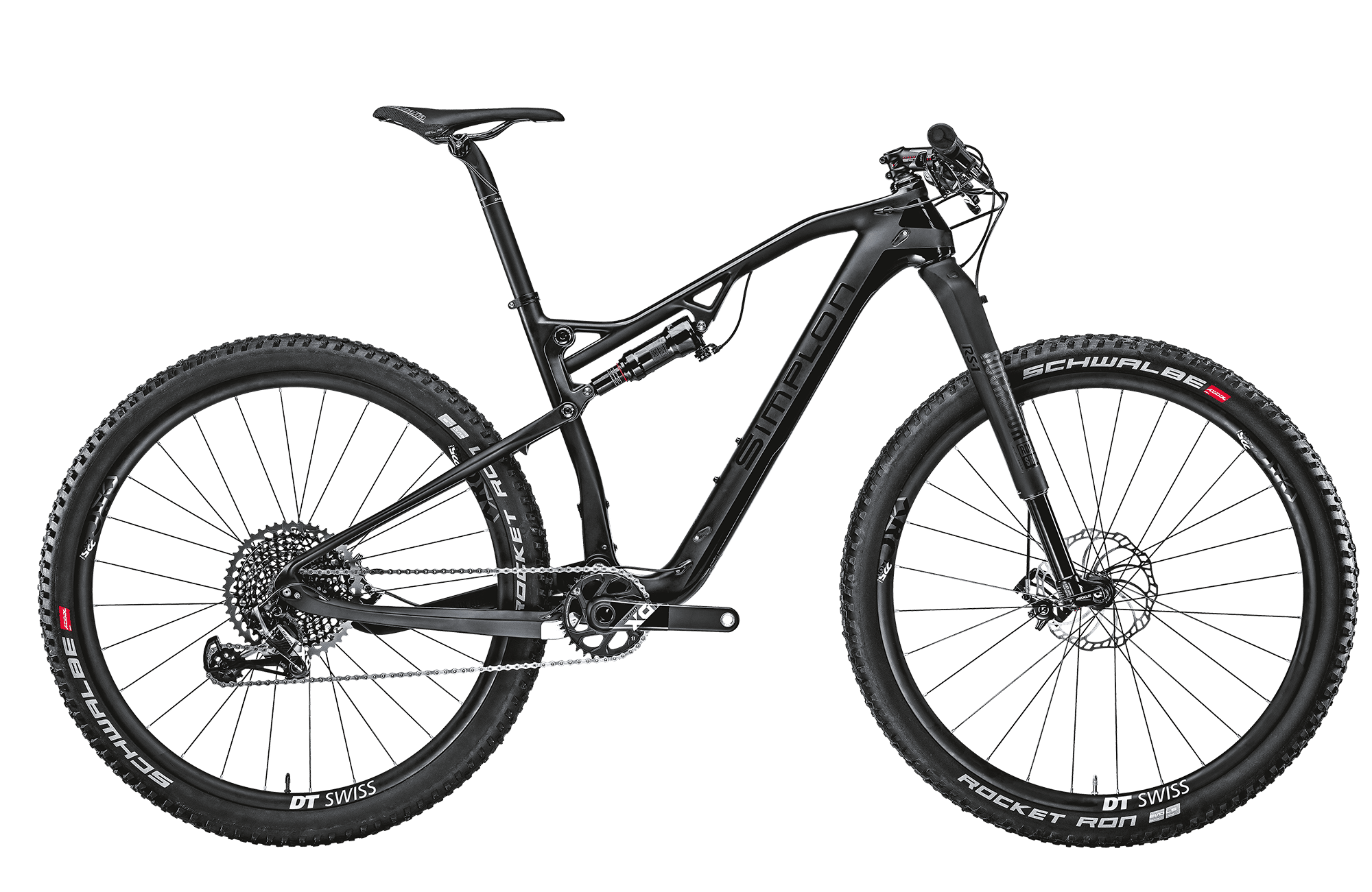

2018 Simplon Cirex 120 geometry
Full frame geometry for the 2018 Simplon Cirex 120, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 591 | 401 | 74 | 69.5 | 90 | 570 | 395 | 751 | 30 | 450 | 1108 | 46 |
| M | 600 | 418 | 74 | 69.5 | 100 | 590 | 430 | 751 | 30 | 450 | 1129 | 46 |
| L | 614 | 434 | 74 | 69.5 | 115 | 610 | 470 | 773 | 30 | 450 | 1150 | 46 |
| XL | 624 | 451 | 74 | 69.5 | 125 | 630 | 525 | 773 | 30 | 450 | 1171 | 46 |
All measurements in millimetres unless marked (°) for angles.
