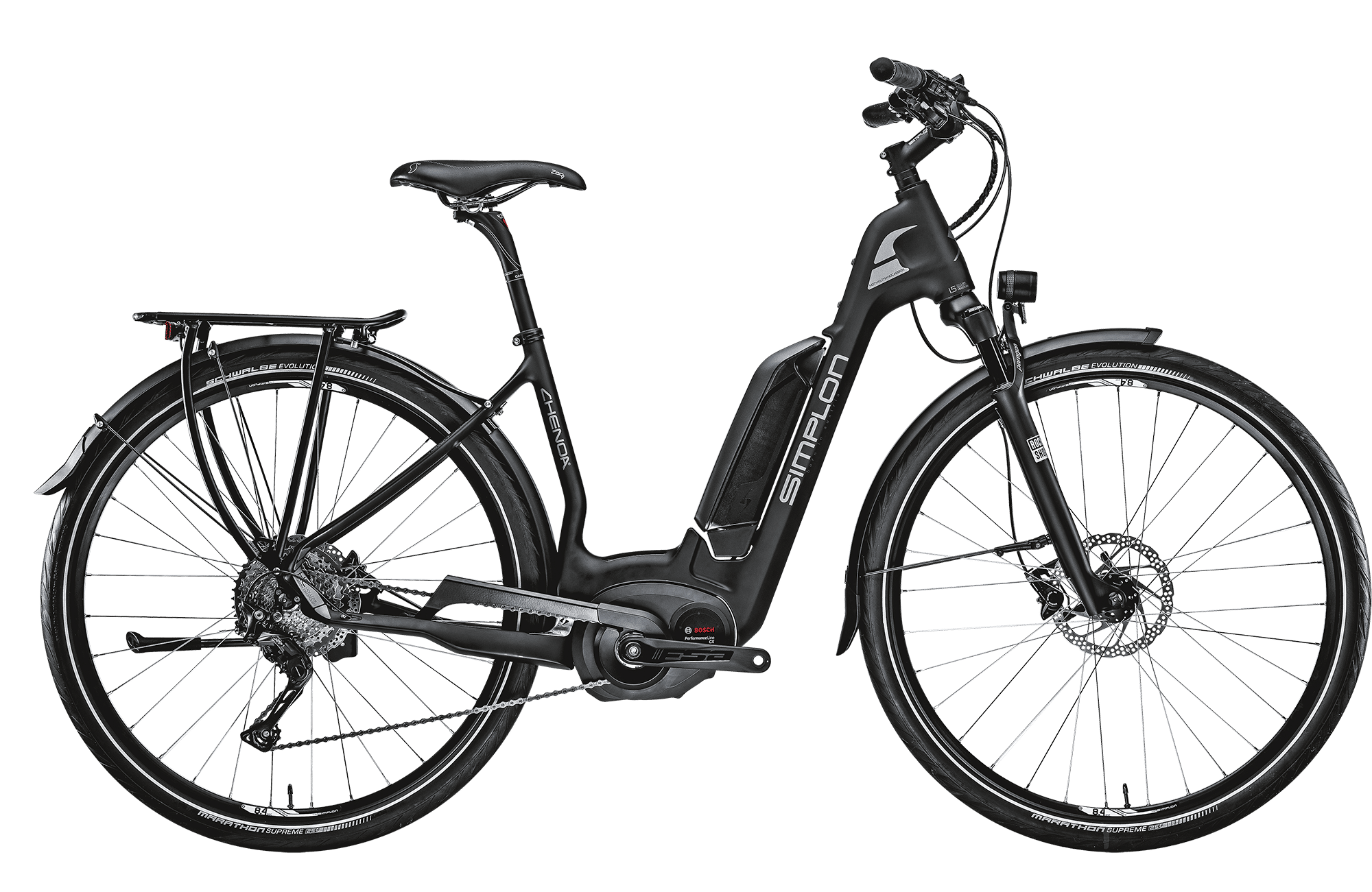

2018 Simplon Chenoa UNI geometry
Full frame geometry for the 2018 Simplon Chenoa UNI, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 40 | 633 | 391 | 73 | 69 | 150 | 585 | 400 | 75 | 490 | 1138 | 45 |
| 47 | 647 | 402 | 73 | 69 | 165 | 600 | 470 | 75 | 490 | 1154 | 45 |
| 54 | 661 | 413 | 73 | 69 | 180 | 615 | 540 | 75 | 490 | 1170 | 45 |
All measurements in millimetres unless marked (°) for angles.
