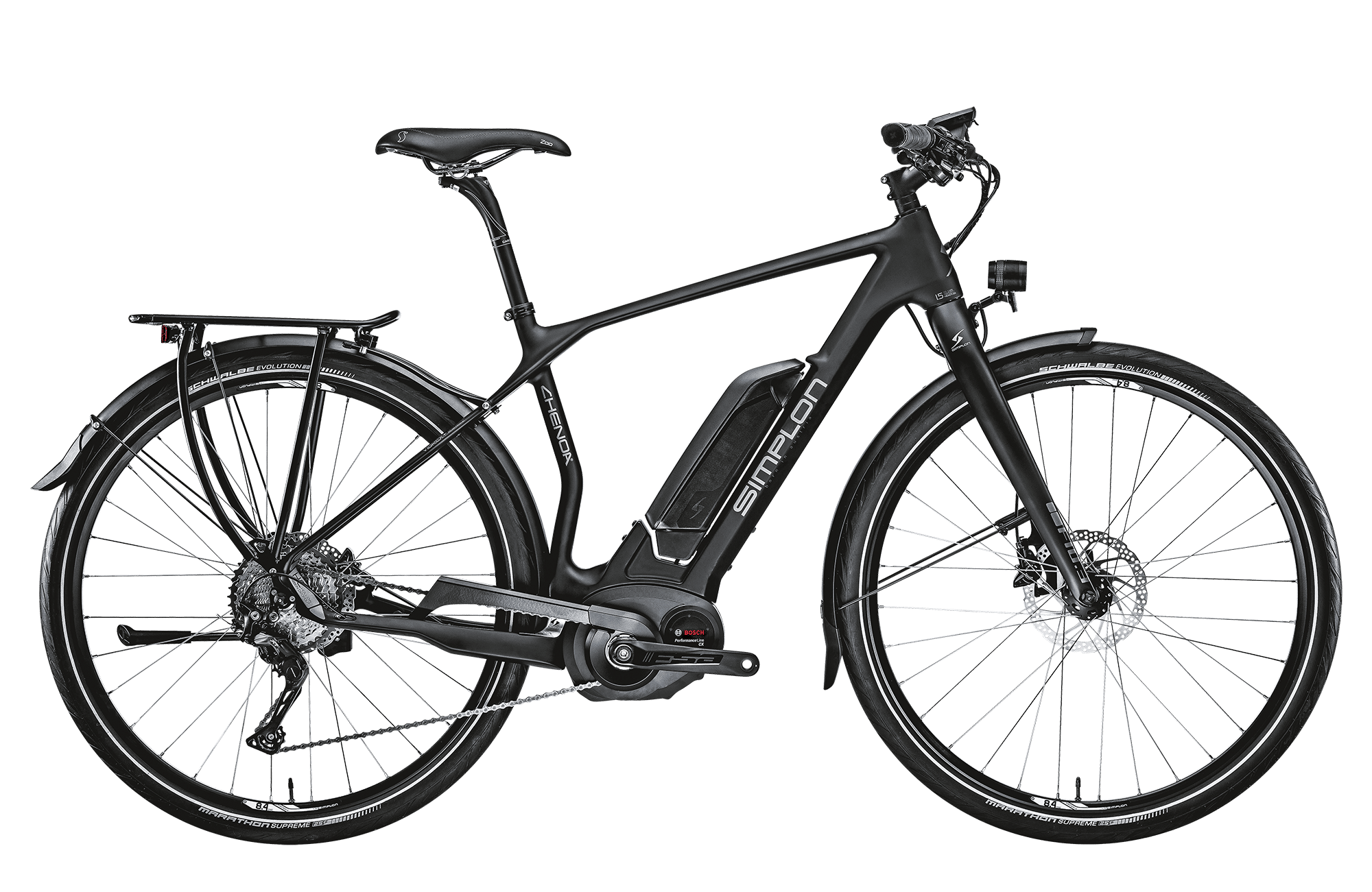

2018 Simplon Chenoa HS geometry
Full frame geometry for the 2018 Simplon Chenoa HS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 46 | 609 | 394 | 73 | 70 | 120 | 580 | 460 | 75 | 490 | 1120 | 45 |
| 51 | 623 | 409 | 73 | 70 | 135 | 600 | 510 | 75 | 490 | 1141 | 45 |
| 56 | 642 | 419 | 73 | 71 | 150 | 615 | 560 | 75 | 490 | 1146 | 45 |
| 61 | 660 | 428 | 73 | 71 | 170 | 630 | 610 | 75 | 490 | 1161 | 45 |
All measurements in millimetres unless marked (°) for angles.
