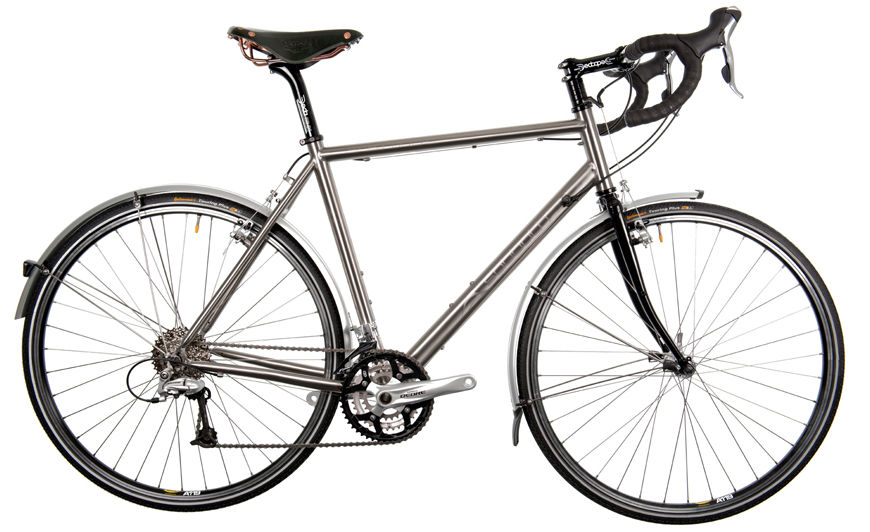

2016 Sabbath Silk Route geometry
Full frame geometry for the 2016 Sabbath Silk Route, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 556 | 370 | 74 | 71 | 120 | 530 | 500 | 1019 |
| S | 572 | 375 | 74 | 71.5 | 135 | 540 | 520 | 1025 |
| M | 591 | 389 | 73.5 | 71.5 | 155 | 565 | 540 | 1045 |
| L | 605 | 394 | 73 | 71.5 | 170 | 580 | 560 | 1055 |
| XL | 626 | 408 | 73 | 72 | 190 | 600 | 580 | 1070 |
All measurements in millimetres unless marked (°) for angles.
