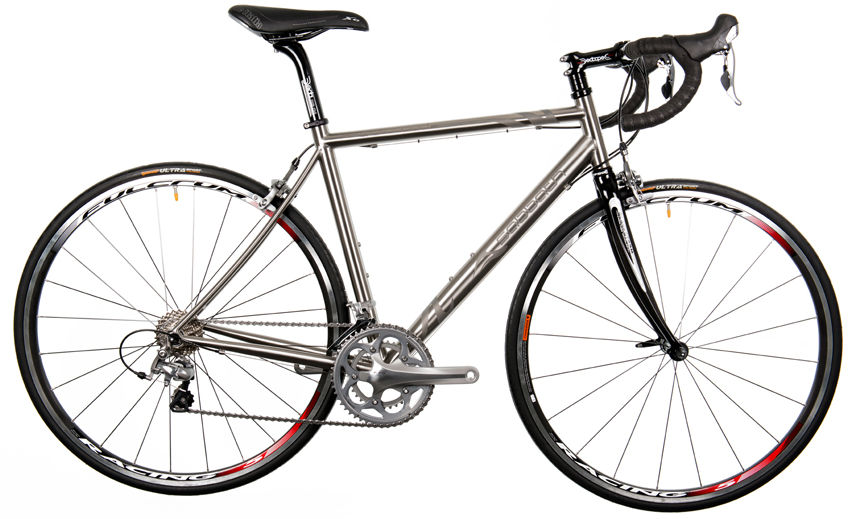

2016 Sabbath Silk Road geometry
Full frame geometry for the 2016 Sabbath Silk Road, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 534 | 382 | 74.5 | 72.5 | 125 | 530 | 500 | 980 |
| S | 554 | 380 | 74 | 72.5 | 145 | 540 | 520 | 985 |
| M | 574 | 380 | 73.5 | 73 | 165 | 550 | 540 | 985 |
| L | 588 | 386 | 73 | 73 | 180 | 566 | 560 | 996 |
| XL | 609 | 391 | 73 | 73.5 | 200 | 577 | 580 | 1000 |
All measurements in millimetres unless marked (°) for angles.
