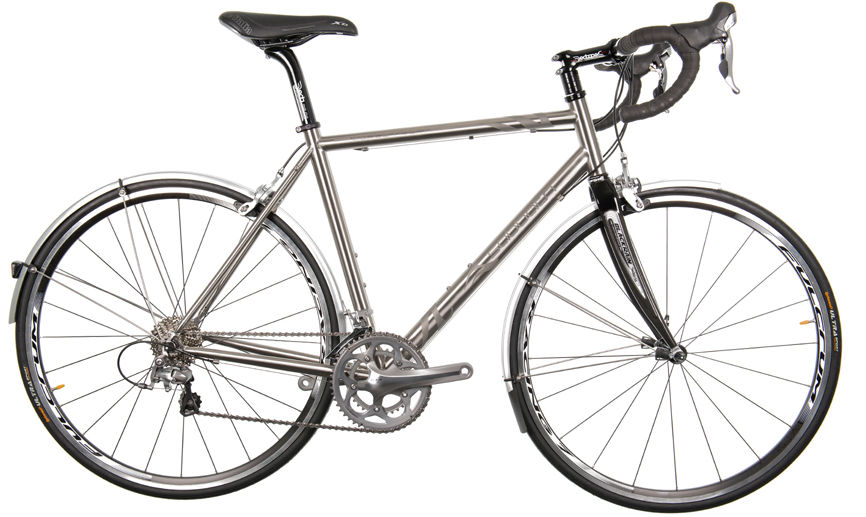

2016 Sabbath September geometry
Full frame geometry for the 2016 Sabbath September, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| XXS | 534 | 360 | 74.5 | 71.5 | 120 | 510 | 475 | 984 |
| XS | 536 | 380 | 74.5 | 71.5 | 120 | 530 | 500 | 1004 |
| S | 550 | 381 | 74 | 71.5 | 135 | 540 | 520 | 1008 |
| M | 571 | 380 | 73.5 | 72 | 155 | 550 | 540 | 1009 |
| L | 584 | 387 | 73 | 72 | 170 | 566 | 560 | 1020 |
| XL | 608 | 391 | 73 | 72.5 | 190 | 577 | 580 | 1025 |
All measurements in millimetres unless marked (°) for angles.
