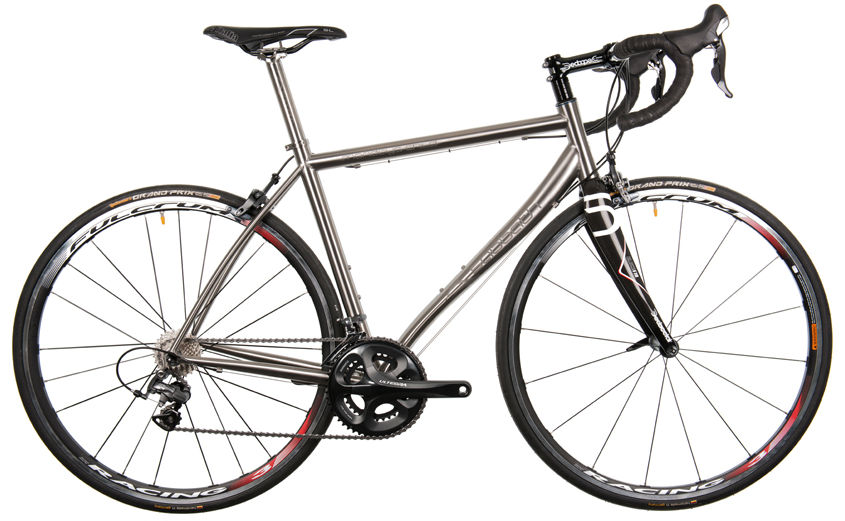

2016 Sabbath Mondays Child geometry
Full frame geometry for the 2016 Sabbath Mondays Child, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| XS | 516 | 376 | 74 | 72.5 | 115 | 522 | 475 | 962 |
| S | 536 | 380 | 73.5 | 73 | 135 | 540 | 495 | 968 |
| M | 566 | 390 | 73 | 73 | 155 | 560 | 515 | 983 |
| L | 580 | 393 | 73 | 73 | 180 | 570 | 535 | 993 |
| XL | 603 | 401 | 72.5 | 74 | 200 | 590 | 555 | 997 |
All measurements in millimetres unless marked (°) for angles.
