2018 Rocky Mountain · MH

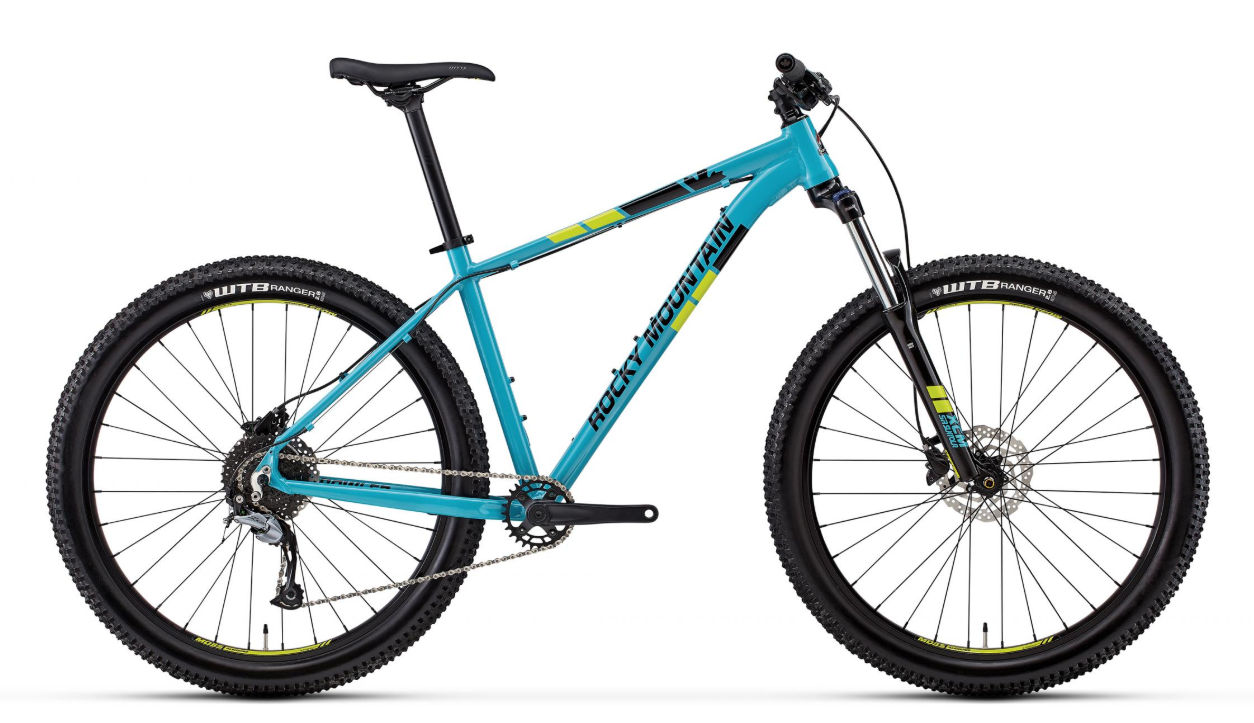

2018 Rocky Mountain Growler geometry
Full frame geometry for the 2018 Rocky Mountain Growler, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 601 | 375 | 73 | 67 | 100 | 560 | 381 | 796 | 40 | 430 | 1098 |
| XXS | 601 | 351 | 73 | 67 | 100 | 535 | 343 | 788 | 40 | 430 | 1073 |
| S | 618 | 390 | 73 | 67 | 100 | 585 | 430 | 819 | 58 | 440 | 1125 |
| M | 623 | 419 | 73 | 67 | 105 | 610 | 457 | 827 | 58 | 440 | 1151 |
| L | 628 | 435 | 73 | 67 | 110 | 630 | 483 | 838 | 58 | 440 | 1171 |
| XL | 638 | 463 | 73 | 67 | 120 | 655 | 521 | 854 | 58 | 440 | 1198 |
All measurements in millimetres unless marked (°) for angles.
