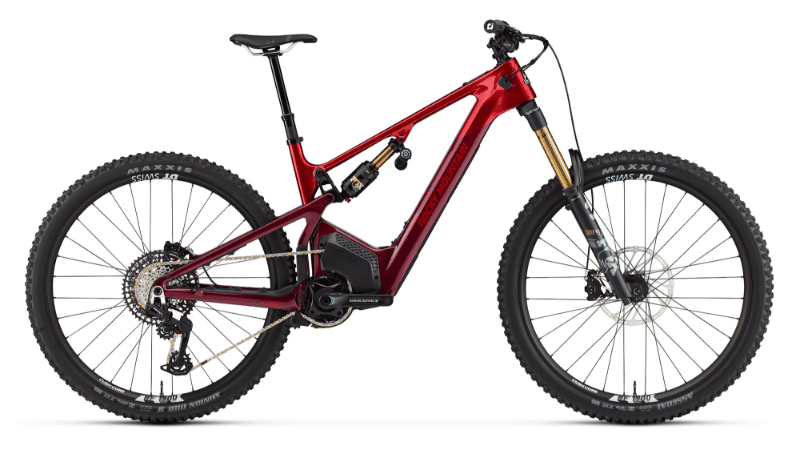

2026 Rocky Mountain Altitude Powerplay Carbon geometry
Full frame geometry for the 2026 Rocky Mountain Altitude Powerplay Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 596 | 430 | 78.5 | 63.5 | 105 | 551 | 380 | 814 | 10 | 440 | 1204 | 37 |
| MD | 629 | 455 | 78.5 | 63.5 | 110 | 582 | 420 | 832 | 10 | 446 | 1251 | 44 |
| LG | 638 | 480 | 77.5 | 63.5 | 120 | 621 | 440 | 833 | 10 | 446 | 1281 | 44 |
| XL | 647 | 510 | 77.5 | 63.5 | 130 | 653 | 470 | 832 | 9.8 | 456 | 1325 | 44 |
All measurements in millimetres unless marked (°) for angles.
