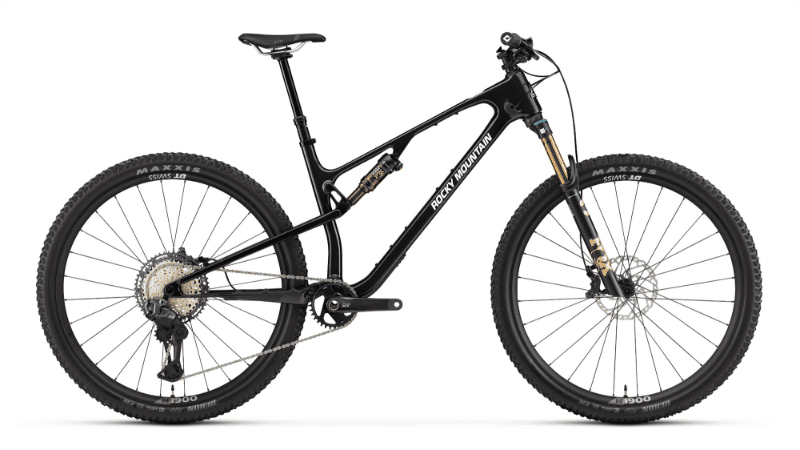

2025 Rocky Mountain Element Carbon geometry
Full frame geometry for the 2025 Rocky Mountain Element Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 609 | 430 | 77 | 65.5 | 100 | 566 | 380 | 814 | 40 | 435 | 1178 | 44 |
| MD | 618 | 455 | 77 | 65.5 | 110 | 591 | 420 | 813 | 40 | 435 | 1207 | 44 |
| LG | 627 | 480 | 77 | 65.5 | 120 | 617 | 445 | 810 | 40 | 435 | 1236 | 44 |
| XL | 637 | 510 | 77 | 65.5 | 130 | 648 | 480 | 809 | 40 | 435 | 1271 | 44 |
All measurements in millimetres unless marked (°) for angles.
