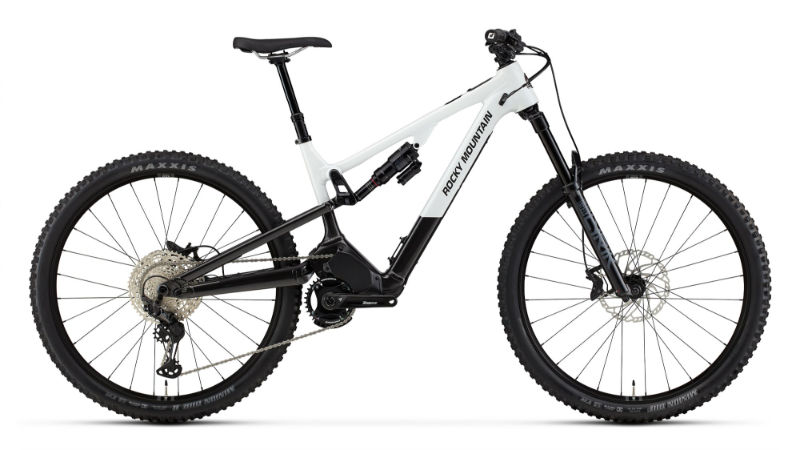

2025 Rocky Mountain Instinct Powerplay SL Alloy geometry
Full frame geometry for the 2025 Rocky Mountain Instinct Powerplay SL Alloy, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SM | 614 | 430 | 77.5 | 64 | 105 | 566 | 365 | 790 | 32 | 440 | 1203 | 42 |
| MD | 618 | 455 | 77 | 64 | 110 | 598 | 410 | 813 | 32 | 440 | 1230 | 42 |
| LG | 632 | 480 | 77 | 64 | 125 | 626 | 440 | 813 | 32 | 450 | 1272 | 42 |
| XL | 641 | 510 | 77 | 64 | 135 | 658 | 470 | 813 | 32 | 450 | 1306 | 42 |
All measurements in millimetres unless marked (°) for angles.
