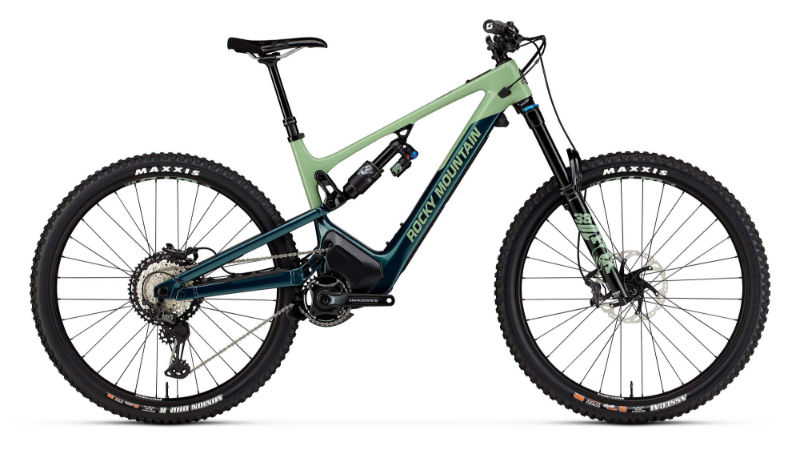

2024 Rocky Mountain Altitude Powerplay Carbon geometry
Full frame geometry for the 2024 Rocky Mountain Altitude Powerplay Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MD | 628 | 450 | 75.5 | 63.5 | 100 | 612 | 420 | 832 | 34 | 439 | 1237 | 44 |
| SM | 629 | 425 | 75.5 | 63.5 | 100 | 587 | 380 | 834 | 34 | 439 | 1210 | 44 |
| LG | 638 | 475 | 75.5 | 63.5 | 110 | 639 | 445 | 831 | 34 | 439 | 1264 | 44 |
| XL | 652 | 508 | 75.5 | 63.5 | 125 | 673 | 480 | 831 | 34 | 439 | 1301 | 44 |
All measurements in millimetres unless marked (°) for angles.
