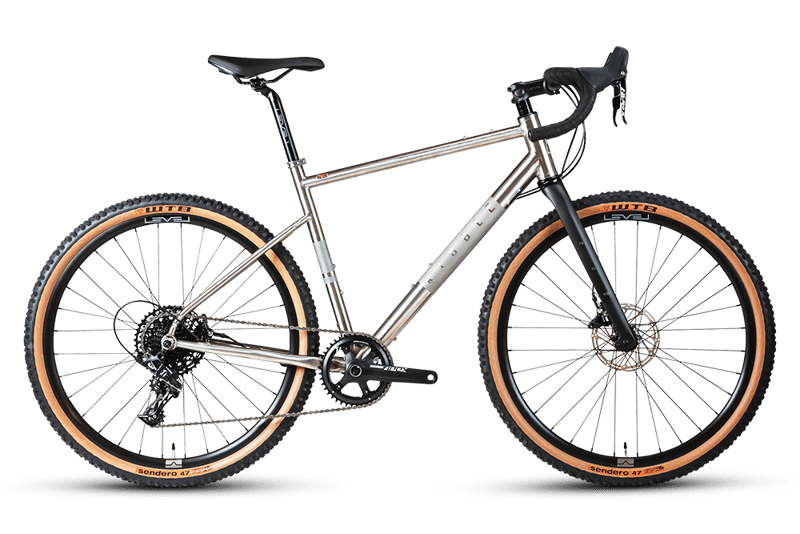

2021 Ribble Gravel Ti geometry
Full frame geometry for the 2021 Ribble Gravel Ti , size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XXS | 525 | 372 | 75.5 | 70 | 90 | 508 | 440 | 70 | 435 | 1020 | 50 |
| XS | 546 | 381 | 75.5 | 70.5 | 110 | 522 | 460 | 70 | 435 | 1016 | 50 |
| S | 565 | 388 | 74 | 71.5 | 130 | 550 | 480 | 67 | 435 | 1037 | 50 |
| M | 584 | 397 | 73.5 | 71.5 | 150 | 570 | 500 | 65 | 435 | 1052 | 50 |
| L | 603 | 406 | 73.3 | 72 | 170 | 585 | 520 | 65 | 435 | 1068 | 50 |
| XL | 625 | 412 | 73 | 72 | 190 | 602 | 540 | 65 | 435 | 1075 | 50 |
All measurements in millimetres unless marked (°) for angles.
