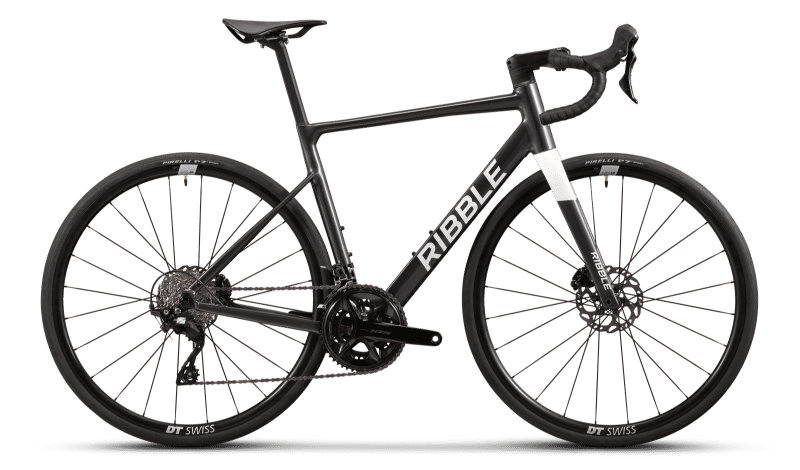

2025 Ribble Allroad AL geometry
Full frame geometry for the 2025 Ribble Allroad AL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523 | 365 | 75 | 71 | 120 | 505 | 450 | 69 | 573 | 415 | 978 | 45 |
| S | 546 | 374 | 74.5 | 72 | 140 | 525 | 480 | 69 | 580 | 415 | 985 | 45 |
| M | 568 | 377 | 73.5 | 73 | 160 | 545 | 500 | 69 | 581 | 415 | 986 | 45 |
| L | 588 | 391 | 73.5 | 73 | 180 | 565 | 520 | 69 | 601 | 415 | 1006 | 45 |
| XL | 607 | 405 | 73.5 | 73 | 200 | 585 | 540 | 69 | 621 | 415 | 1027 | 45 |
All measurements in millimetres unless marked (°) for angles.
