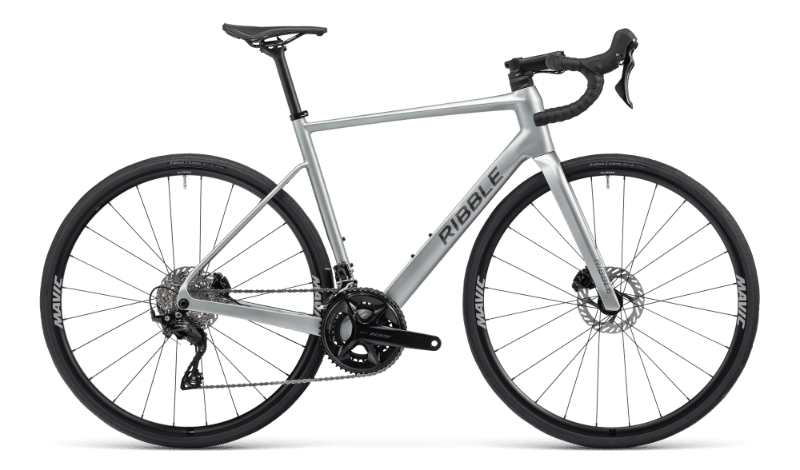

2026 Ribble Allroad Carbon geometry
Full frame geometry for the 2026 Ribble Allroad Carbon, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 363 | 74.6 | 70.6 | 120 | 506 | 450 | 67 | 574 | 415 | 980 | 45 |
| S | 542 | 372 | 74.2 | 71.7 | 140 | 526 | 490 | 67 | 581 | 415 | 987 | 45 |
| M | 565 | 374 | 73.1 | 72.6 | 160 | 546 | 530 | 67 | 581 | 415 | 987 | 45 |
| L | 585 | 390 | 73.2 | 72.7 | 180 | 568 | 550 | 67 | 603 | 415 | 1009 | 45 |
| XL | 604 | 403 | 73.1 | 72.6 | 200 | 586 | 580 | 67 | 622 | 415 | 1028 | 45 |
All measurements in millimetres unless marked (°) for angles.
