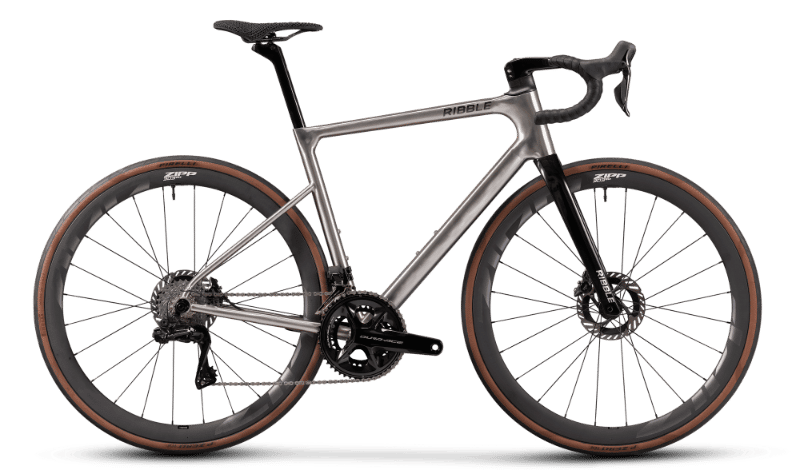

2026 Ribble Allroad Ti geometry
Full frame geometry for the 2026 Ribble Allroad Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 523.3 | 364.8 | 75 | 71 | 120 | 505 | 450 | 69 | 573 | 415 | 978 | 45 |
| S | 545.8 | 373.6 | 74.5 | 72 | 140 | 525 | 480 | 69 | 580 | 415 | 985 | 45 |
| M | 568.4 | 376.5 | 73.5 | 73 | 160 | 545 | 500 | 69 | 580 | 415 | 985 | 45 |
| L | 587.6 | 391 | 73.5 | 73 | 180 | 565 | 520 | 69 | 600 | 415 | 1005 | 45 |
| XL | 606.7 | 405.3 | 73.5 | 73 | 200 | 585 | 540 | 69 | 620 | 415 | 1026 | 45 |
All measurements in millimetres unless marked (°) for angles.
