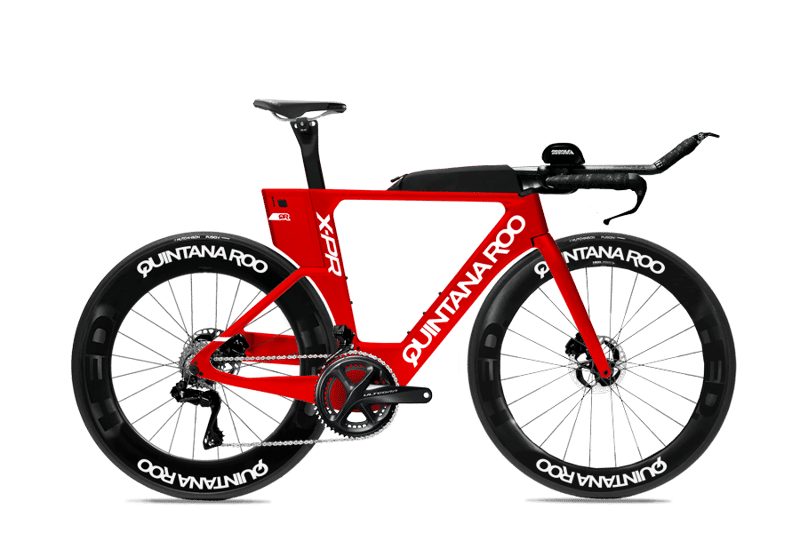

2022 Quintana Roo X-PR geometry
Full frame geometry for the 2022 Quintana Roo X-PR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 475 | 382 | 77 | 72 | 58 | 470 | 480 | 730 | 73.5 | 569 | 395 | 953 |
| 50 | 495 | 392 | 77 | 72 | 80 | 490 | 500 | 750 | 73.5 | 584 | 395 | 967 |
| 52 | 515 | 412 | 77 | 72 | 100 | 510 | 520 | 770 | 73.5 | 610 | 395 | 994 |
| 54 | 535 | 427 | 77 | 72 | 122 | 530 | 540 | 790 | 73.5 | 631 | 395 | 1015 |
| 56 | 555 | 437 | 77 | 72 | 143 | 545 | 560 | 815 | 73.5 | 648 | 395 | 1031 |
| 58.5 | 580 | 447 | 77 | 72 | 170 | 560 | 585 | 840 | 73.5 | 665 | 395 | 1048 |
All measurements in millimetres unless marked (°) for angles.
