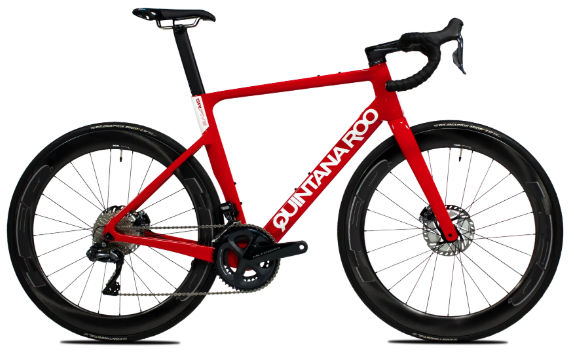

2020 Quintana Roo SRFive geometry
Full frame geometry for the 2020 Quintana Roo SRFive, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 360 | 73.5 | 71.2 | 115 | 515 | 445 | 723 | 72 | 570 | 415 | 970 | 45 | 69 |
| S | 540 | 370 | 73.5 | 71.5 | 130 | 530 | 465 | 745 | 72 | 580 | 415 | 984 | 45 | 67 |
| M | 565 | 380 | 73.5 | 72 | 155 | 550 | 490 | 774 | 72 | 595 | 415 | 997 | 45 | 64 |
| L | 580 | 400 | 73.5 | 72 | 170 | 570 | 510 | 792 | 72 | 615 | 415 | 1019 | 45 | 64 |
| XL | 600 | 410 | 73.5 | 72 | 190 | 585 | 535 | 812 | 72 | 630 | 415 | 1035 | 45 | 64 |
All measurements in millimetres unless marked (°) for angles.
