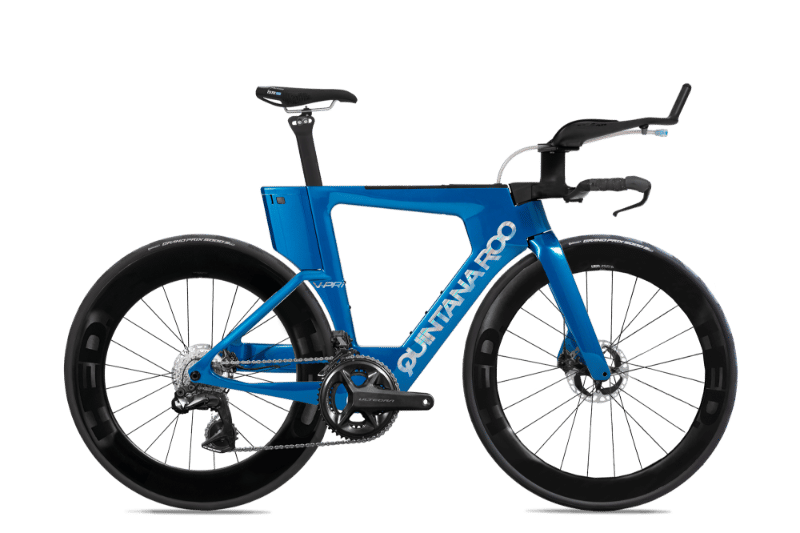

2025 Quintana Roo V-PRi geometry
Full frame geometry for the 2025 Quintana Roo V-PRi, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 475 | 395 | 77 | 72 | 65 | 487 | 505 | 763 | 73.5 | 581 | 395 | 964 |
| M | 495 | 420 | 77 | 72 | 83 | 515 | 540 | 791 | 73.5 | 610 | 395 | 994 |
| L | 535 | 443 | 77 | 72 | 126 | 550 | 585 | 833 | 73.5 | 648 | 395 | 1031 |
All measurements in millimetres unless marked (°) for angles.
