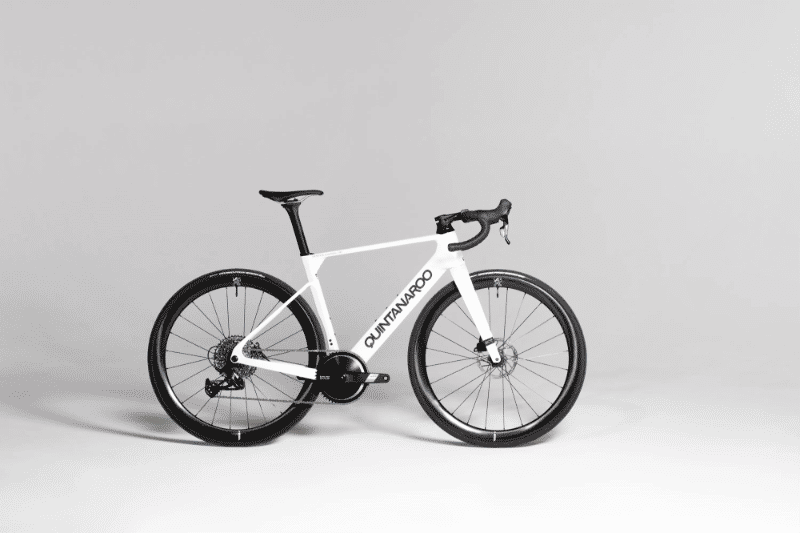

2026 Quintana Roo Service Course Tri geometry
Full frame geometry for the 2026 Quintana Roo Service Course Tri, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 515 | 370 | 74.5 | 71 | 102 | 513 | 410 | 711 | 74 | 573 | 411 | 976 | 47 |
| S | 535 | 380 | 74 | 72 | 119 | 533 | 450 | 743 | 74 | 584 | 411 | 983 | 47 |
| M | 560 | 390 | 73.5 | 73 | 144 | 556 | 485 | 775 | 72 | 592 | 411 | 993 | 47 |
| L | 585 | 400 | 73.5 | 73 | 171 | 573 | 520 | 809 | 70 | 611 | 411 | 1012 | 47 |
All measurements in millimetres unless marked (°) for angles.
