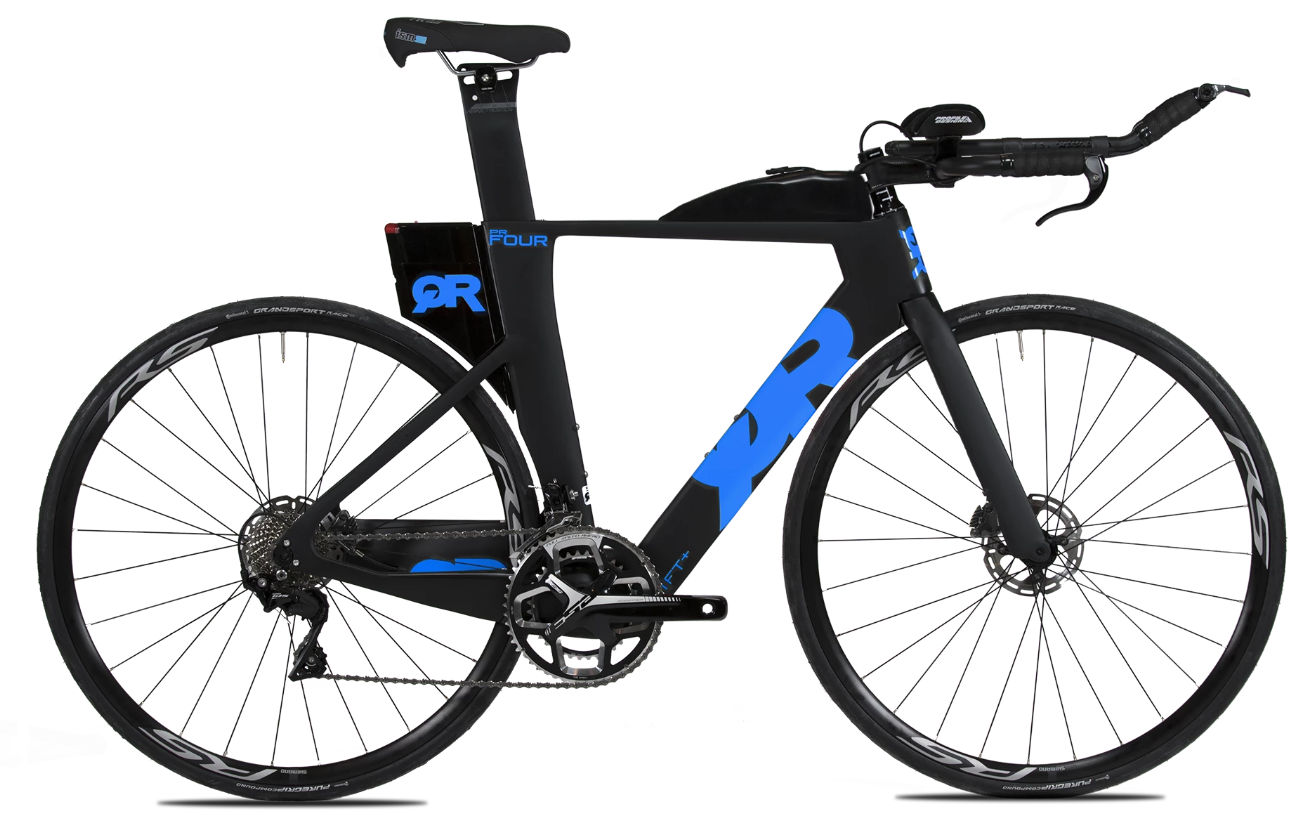

2018 Quintana Roo PRFOUR DISC geometry
Full frame geometry for the 2018 Quintana Roo PRFOUR DISC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 48 | 480 | 380 | 80 | 71 | 74 | 470 | 480 | 730 | 74 | 574 | 395 | 957 | 48 | 66 |
| 50 | 500 | 390 | 80 | 72 | 95 | 490 | 500 | 750 | 74 | 584 | 395 | 968 | 48 | 60 |
| 52 | 520 | 410 | 80 | 72 | 115 | 510 | 520 | 770 | 74 | 610 | 395 | 995 | 48 | 60 |
| 54 | 540 | 425 | 80 | 72 | 142 | 530 | 540 | 790 | 74 | 633 | 395 | 1017 | 48 | 60 |
| 56 | 560 | 435 | 80 | 72 | 158 | 545 | 560 | 815 | 74 | 647 | 395 | 1031 | 48 | 60 |
| 58.5 | 585 | 445 | 80 | 72 | 184 | 560 | 585 | 840 | 74 | 665 | 395 | 1050 | 48 | 60 |
All measurements in millimetres unless marked (°) for angles.
