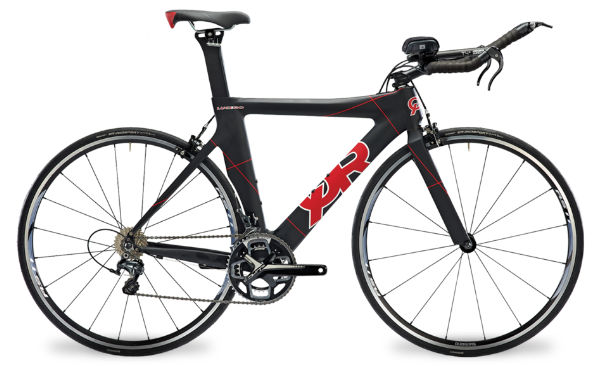

2015 Quintana Roo Lucero geometry
Full frame geometry for the 2015 Quintana Roo Lucero, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 453 | 393 | 78.5 | 72.5 | 100 | 490 | 440 | 698 | 40 | 572 | 385 | 945 | 42 | 54 |
| S | 502 | 388 | 78.5 | 72.5 | 100 | 490 | 470 | 728 | 68 | 577 | 385 | 948 | 48 | 55 |
| M | 527 | 403 | 78.5 | 72.5 | 125 | 520 | 510 | 762 | 68 | 605 | 385 | 976 | 48 | 55 |
| L | 568 | 424 | 78.5 | 72.5 | 168 | 550 | 550 | 800 | 68 | 639 | 385 | 1010 | 48 | 55 |
All measurements in millimetres unless marked (°) for angles.
