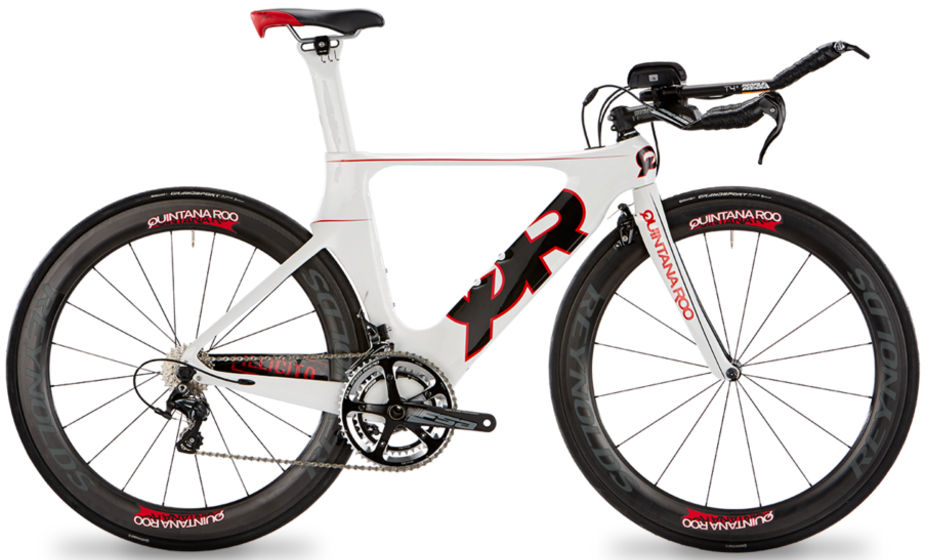

2015 Quintana Roo Illicito geometry
Full frame geometry for the 2015 Quintana Roo Illicito, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 497 | 420 | 78.5 | 72 | 90 | 520 | 510 | 732 | 74 | 613 | 385 | 986 | 48 | 58 |
| S | 497 | 396 | 78.5 | 72 | 90 | 500 | 490 | 732 | 74 | 589 | 385 | 963 | 48 | 58 |
| ML | 517 | 438 | 78.5 | 72 | 110 | 540 | 530 | 751 | 74 | 636 | 385 | 1011 | 48 | 58 |
| L | 545 | 452 | 78.5 | 72 | 140 | 560 | 560 | 793 | 74 | 659 | 385 | 1033 | 48 | 58 |
All measurements in millimetres unless marked (°) for angles.
