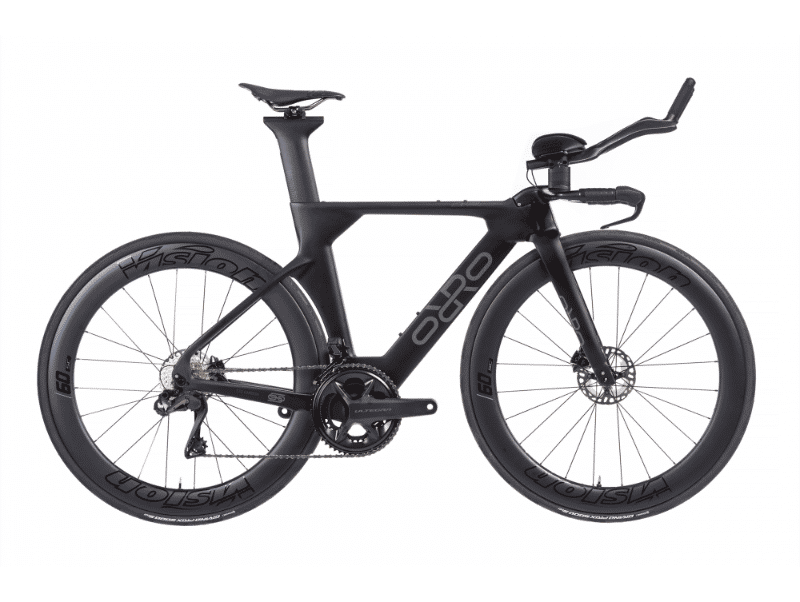

2025 Orro Venturi Tri geometry
Full frame geometry for the 2025 Orro Venturi Tri, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 464 | 381.2 | 78 | 71 | 61.3 | 479.8 | 463 | 75 | 400 | 960 | 69.8 |
| M | 475 | 401.8 | 78 | 72 | 67.2 | 502.9 | 495 | 75 | 400 | 971.1 | 63.5 |
| L | 505 | 421.5 | 78 | 72.5 | 97 | 528.8 | 526 | 75 | 400 | 996.2 | 60.3 |
| XL | 535 | 446.3 | 78 | 72.5 | 128.5 | 560.1 | 557 | 75 | 400 | 1030.5 | 60.3 |
All measurements in millimetres unless marked (°) for angles.
