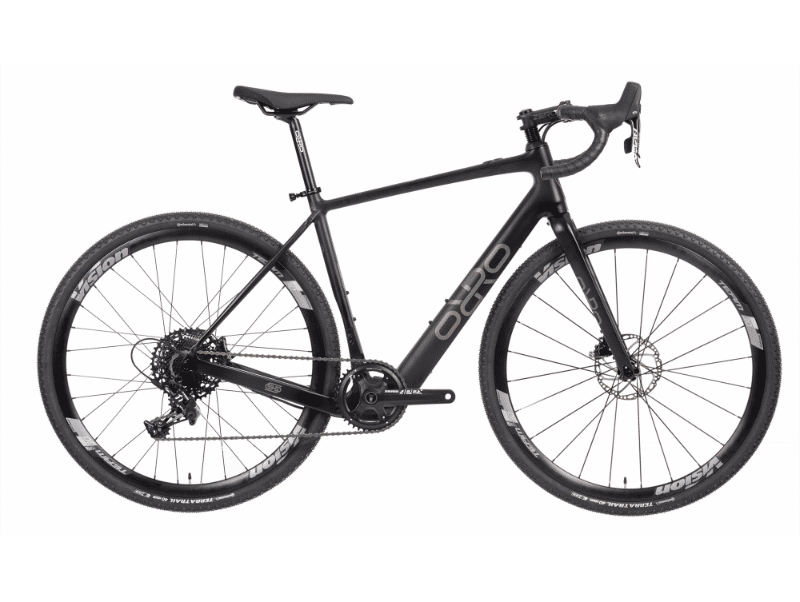

2025 Orro Terra E geometry
Full frame geometry for the 2025 Orro Terra E, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 560 | 373 | 74.5 | 71 | 137 | 529 | 460 | 72 | 423 | 1015 |
| M | 584 | 384 | 73.9 | 71 | 162 | 553 | 500 | 72 | 423 | 1030 |
| L | 607 | 394 | 73.1 | 71 | 187 | 578 | 540 | 72 | 423 | 1048 |
| XL | 643 | 407 | 73 | 71 | 225 | 604 | 580 | 72 | 423 | 1073 |
All measurements in millimetres unless marked (°) for angles.
