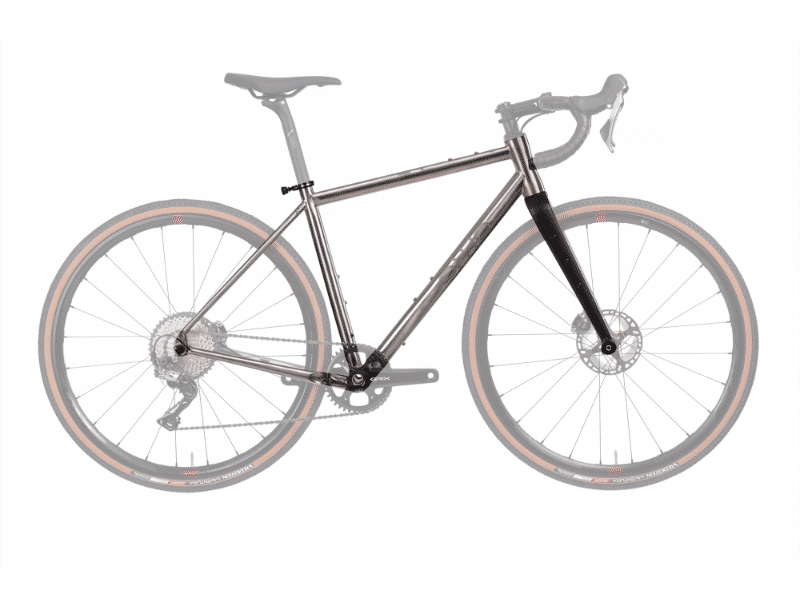

2025 Orro Terra Ti geometry
Full frame geometry for the 2025 Orro Terra Ti, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544 | 368 | 75.6 | 71 | 120 | 508 | 460 | 72 | 420 | 997 |
| S | 563 | 377 | 74.9 | 71 | 140 | 529 | 480 | 72 | 420 | 1013 |
| M | 587 | 387 | 74.2 | 71 | 165 | 553 | 510 | 72 | 420 | 1031 |
| L | 612 | 397 | 73.3 | 71 | 192 | 581 | 545 | 72 | 422.5 | 1052 |
| XL | 644 | 407 | 72.6 | 71 | 225 | 604 | 580 | 72 | 425 | 1076 |
All measurements in millimetres unless marked (°) for angles.
