2025 Orro · RD

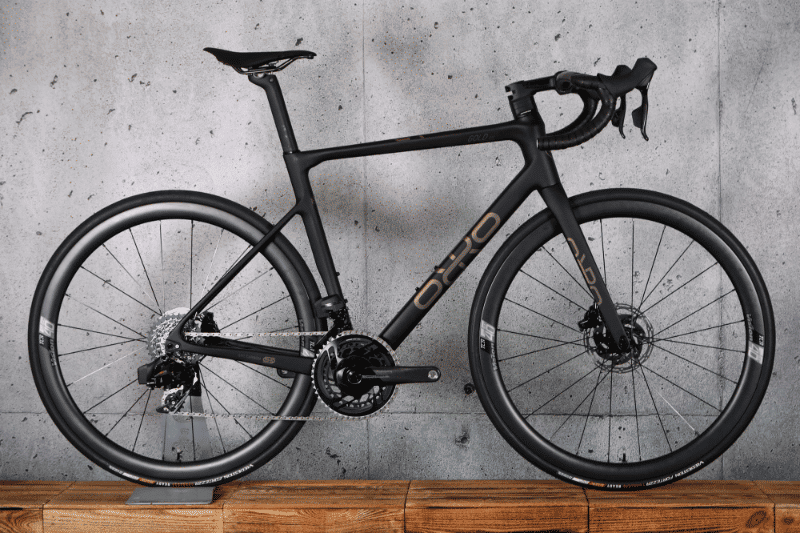

2025 Orro Gold STC geometry
Full frame geometry for the 2025 Orro Gold STC, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 360 | 75 | 72 | 115 | 500 | 450 | 410 | 961 |
| S | 544 | 370 | 74.5 | 72.1 | 135 | 521 | 480 | 410 | 977 |
| M | 570 | 377 | 74 | 72.2 | 162 | 541 | 510 | 410 | 992 |
| L | 588 | 392 | 73.5 | 72.5 | 180 | 566 | 540 | 410 | 1009 |
| XL | 609 | 402 | 73 | 72.8 | 200 | 588 | 570 | 410 | 1022 |
All measurements in millimetres unless marked (°) for angles.
