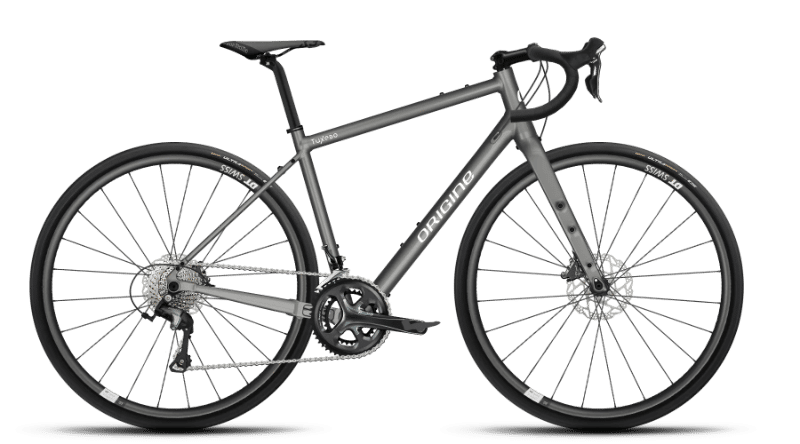

2026 Origine Tuxedo Endurance geometry
Full frame geometry for the 2026 Origine Tuxedo Endurance, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 563 | 364 | 74.5 | 70.5 | 150 | 520 | 450 | 76 | 432 | 1006 | 45 |
| M | 587 | 371 | 74 | 71 | 175 | 539 | 480 | 75 | 432 | 1017 | 45 |
| L | 612 | 378 | 73.5 | 71.5 | 200 | 559 | 510 | 74 | 432 | 1028 | 45 |
| XL | 632 | 386 | 73 | 72 | 220 | 579 | 545 | 73 | 432 | 1038 | 45 |
All measurements in millimetres unless marked (°) for angles.
