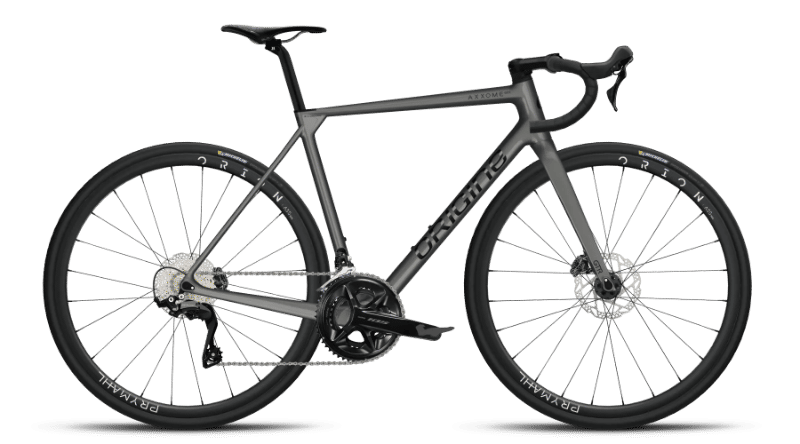

2026 Origine Axxome GTR geometry
Full frame geometry for the 2026 Origine Axxome GTR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 524 | 370 | 74 | 70.5 | 120 | 520 | 450 | 72 | 417 | 988 | 45 |
| S | 540 | 374 | 73.9 | 71 | 135 | 530 | 480 | 72 | 417 | 994 | 45 |
| M | 557 | 383 | 73.8 | 72 | 150 | 545 | 510 | 72 | 417 | 999 | 45 |
| L | 578 | 391 | 73.7 | 72.5 | 170 | 560 | 540 | 72 | 417 | 1008 | 45 |
| XL | 599 | 399 | 73.6 | 73 | 190 | 575 | 570 | 72 | 417 | 1018 | 45 |
| XXL | 623 | 405 | 73.5 | 73 | 215 | 590 | 595 | 70 | 417 | 1032 | 45 |
All measurements in millimetres unless marked (°) for angles.
