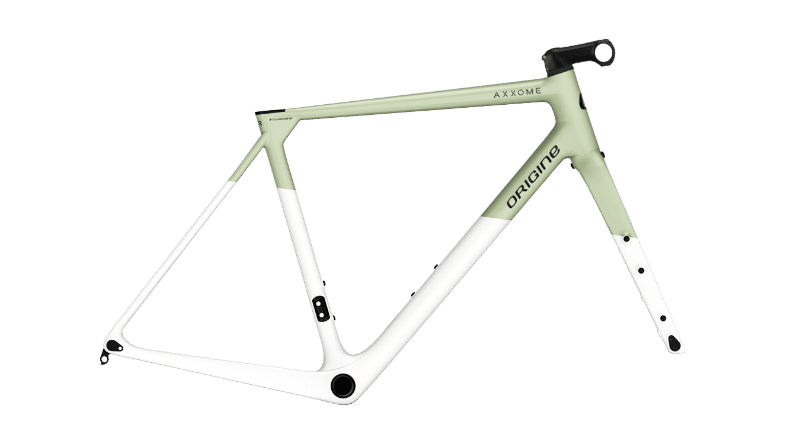

2026 Origine Axxome GTR Ultra geometry
Full frame geometry for the 2026 Origine Axxome GTR Ultra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 530 | 361 | 73 | 69.5 | 120 | 522.7 | 450 | 64.9 | 417 | 1000 | 50 |
| S | 546 | 365 | 72.9 | 70 | 135 | 532.7 | 480 | 64.9 | 417 | 1005 | 50 |
| M | 564 | 373 | 72.8 | 71 | 150 | 547.8 | 510 | 64.9 | 417 | 1010 | 50 |
| L | 585 | 381 | 72.7 | 71.5 | 170 | 562.9 | 540 | 64.9 | 417 | 1019 | 50 |
| XL | 606 | 388 | 72.6 | 72 | 190 | 578 | 570 | 64.9 | 417 | 1028 | 50 |
| XXL | 630 | 395 | 72.5 | 72 | 215 | 593.1 | 595 | 64.9 | 417 | 1042 | 50 |
All measurements in millimetres unless marked (°) for angles.
