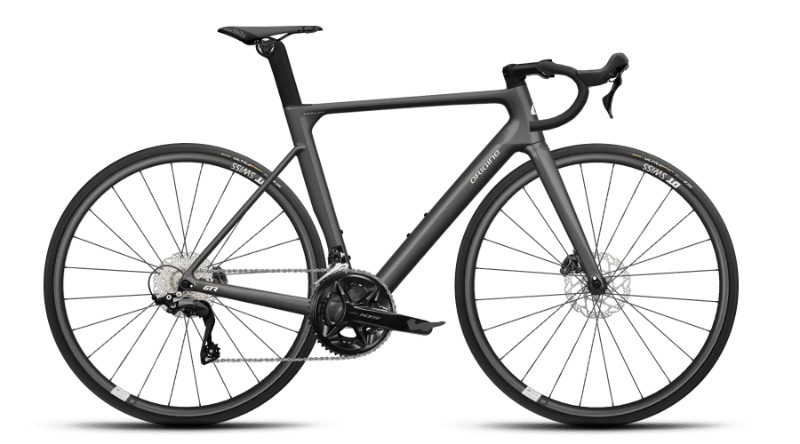

2026 Origine Fraxion GTR geometry
Full frame geometry for the 2026 Origine Fraxion GTR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 524 | 380 | 74 | 72 | 125 | 530 | 490 | 72 | 410 | 977 | 45 |
| M | 545 | 384 | 73.5 | 72.5 | 145 | 545 | 520 | 72 | 410 | 983 | 45 |
| L | 564 | 393 | 73.5 | 72.5 | 165 | 560 | 540 | 72 | 410 | 999 | 45 |
| XL | 583 | 404 | 73.5 | 72.5 | 185 | 577 | 565 | 72 | 410 | 1016 | 45 |
All measurements in millimetres unless marked (°) for angles.
