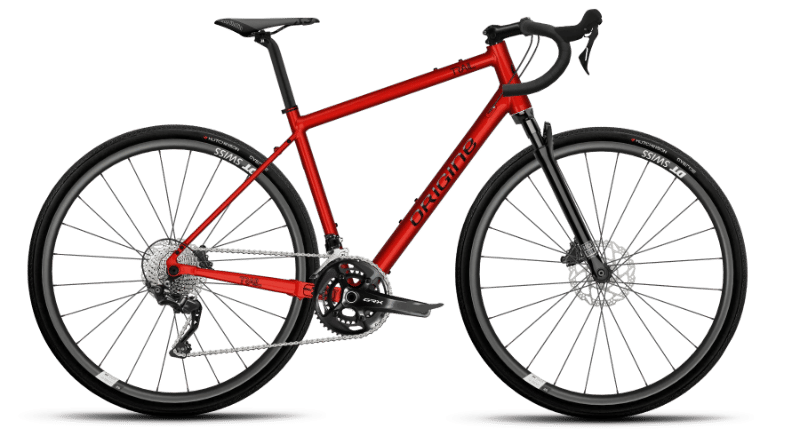

2026 Origine Trail Explore geometry
Full frame geometry for the 2026 Origine Trail Explore, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 586 | 340 | 72.4 | 68.4 | 150 | 526 | 450 | 61 | 432 | 1030 | 51 |
| M | 611 | 346 | 72 | 69 | 175 | 545 | 480 | 60 | 432 | 1040 | 51 |
| L | 636 | 352 | 71.5 | 69.5 | 200 | 565 | 510 | 59 | 432 | 1050 | 51 |
| XL | 656 | 360 | 71 | 70 | 220 | 586 | 545 | 58 | 432 | 1060 | 51 |
All measurements in millimetres unless marked (°) for angles.
