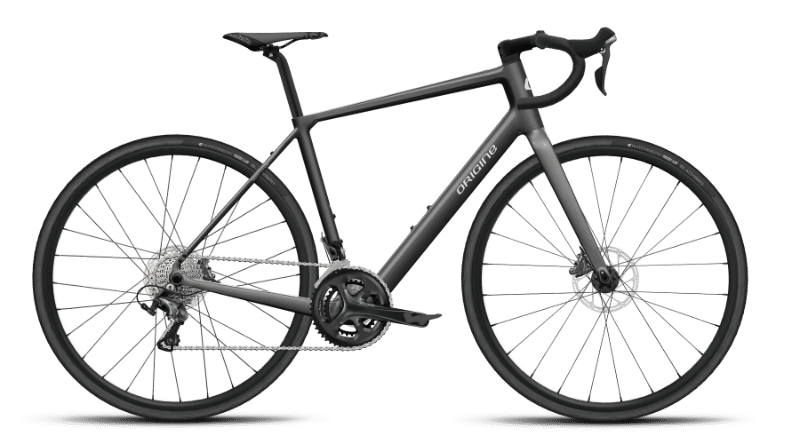

2026 Origine Newton[e] geometry

Name: 2026 Origine Newton[e]
Brand: Origine

Full frame geometry for the 2026 Origine Newton[e], size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)
XS	550	360	74	71.5	135	510	440	80	429	986	45
S	575	378	74	72	160	535	450	80	429	1008	45
M	587	390	74	72	175	550	480	78	429	1025	45
L	611	398	74	72	200	565	510	78	429	1041	45
XL	630	413	74	72	220	585	545	78	429	1062	45

All measurements in millimetres unless marked (°) for angles.
