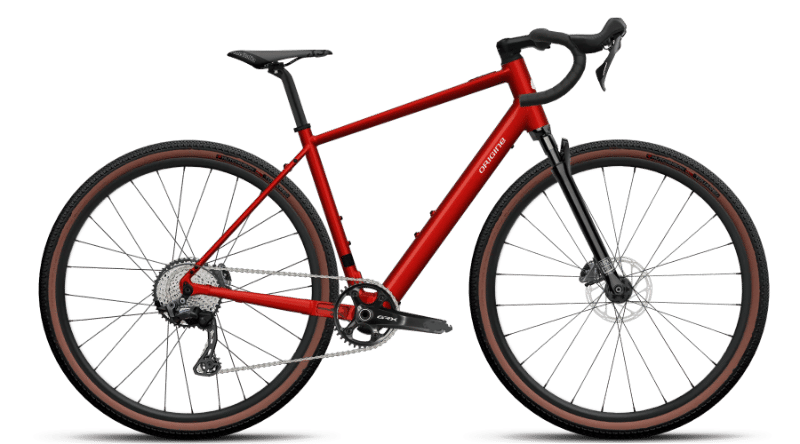

2026 Origine Help Explore geometry
Full frame geometry for the 2026 Origine Help Explore, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 565 | 340 | 72 | 68.5 | 130 | 526 | 440 | 62 | 429 | 1020 | 51 |
| S | 590 | 348 | 72 | 69 | 150 | 541 | 450 | 62 | 429 | 1031 | 51 |
| M | 611 | 357 | 72 | 69 | 175 | 556 | 480 | 60 | 429 | 1048 | 51 |
| L | 634 | 365 | 72 | 69 | 200 | 571 | 510 | 60 | 429 | 1065 | 51 |
| XL | 654 | 379 | 72 | 69 | 220 | 591 | 545 | 60 | 429 | 1086 | 51 |
All measurements in millimetres unless marked (°) for angles.
