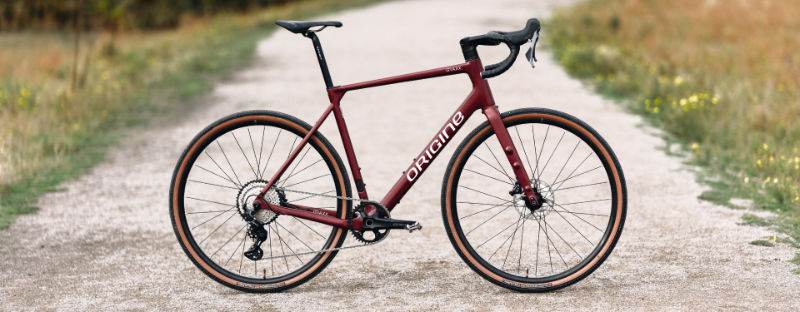

2026 Origine Graxx GTS geometry
Full frame geometry for the 2026 Origine Graxx GTS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 544 | 364 | 74.5 | 70.5 | 120 | 515 | 455 | 75 | 430 | 1007 | 50 |
| S | 564 | 378 | 74 | 71 | 140 | 540 | 475 | 75 | 430 | 1023 | 50 |
| M | 585 | 387 | 74 | 71.3 | 160 | 555 | 505 | 75 | 430 | 1036 | 50 |
| L | 611 | 395 | 74 | 72 | 185 | 570 | 535 | 75 | 430 | 1045 | 50 |
| XL | 630 | 404 | 74 | 72 | 205 | 585 | 570 | 75 | 430 | 1061 | 50 |
All measurements in millimetres unless marked (°) for angles.
