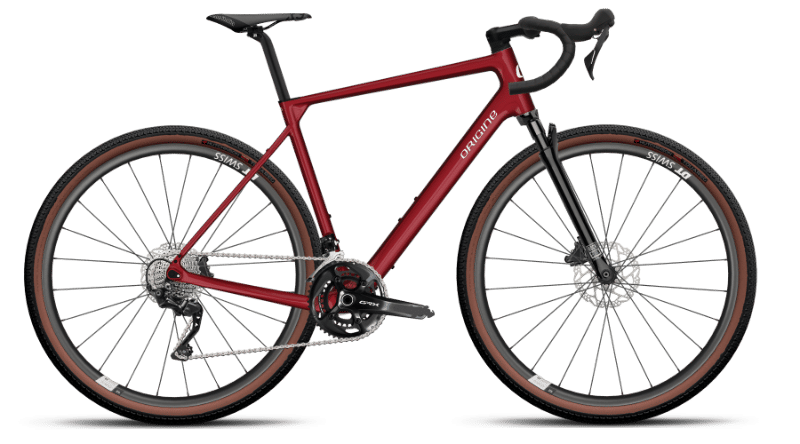

2026 Origine Graxx GTO Explore geometry
Full frame geometry for the 2026 Origine Graxx GTO Explore, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 558 | 343 | 72.4 | 68.4 | 120 | 521 | 455 | 60 | 430 | 1022 | 51 |
| S | 578 | 357 | 71.9 | 68.9 | 140 | 546 | 475 | 60 | 430 | 1038 | 51 |
| M | 598 | 367 | 72 | 69.3 | 160 | 561 | 505 | 60 | 430 | 1051 | 51 |
| L | 625 | 373 | 72 | 70 | 185 | 576 | 535 | 60 | 430 | 1059 | 51 |
| XL | 644 | 382 | 72 | 70 | 205 | 591 | 570 | 60 | 430 | 1075 | 51 |
All measurements in millimetres unless marked (°) for angles.
