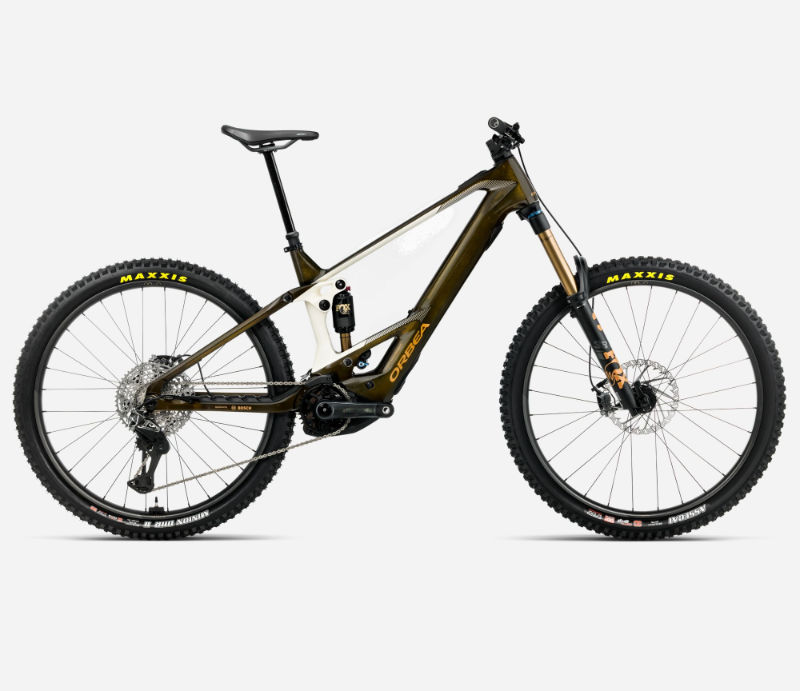

2026 Orbea Wild geometry
Full frame geometry for the 2026 Orbea Wild, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 625 | 435 | 77.5 | 63.5 | 110 | 563 | 415 | 730 | 22 | 448 | 1228 | 44 |
| M | 634 | 455 | 77.5 | 63.5 | 120 | 586 | 415 | 730 | 22 | 448 | 1252 | 44 |
| L | 643 | 480 | 77.5 | 63.5 | 130 | 612 | 435 | 730 | 22 | 448 | 1282 | 44 |
| XL | 652 | 505 | 77.5 | 63.5 | 140 | 639 | 450 | 730 | 22 | 448 | 1311 | 44 |
All measurements in millimetres unless marked (°) for angles.
