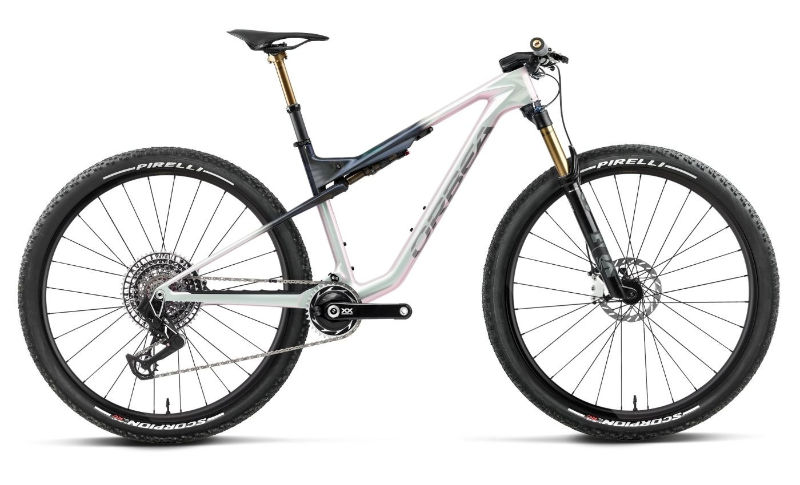

2027 Orbea Oiz geometry
Full frame geometry for the 2027 Orbea Oiz, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 595.5 | 450 | 76.7 | 66.8 | 90 | 590.8 | 430 | 775 | 42 | 430 | 1163 | 44 |
| S | 595.5 | 425 | 77 | 66.8 | 90 | 563.1 | 405 | 773 | 42 | 430 | 1138 | 44 |
| L | 604.5 | 472 | 76.6 | 66.8 | 100 | 615.7 | 455 | 779 | 42 | 430 | 1189 | 44 |
| XL | 618.5 | 495 | 76.7 | 66.8 | 115 | 641.5 | 480 | 785 | 42 | 430 | 1217 | 44 |
All measurements in millimetres unless marked (°) for angles.
