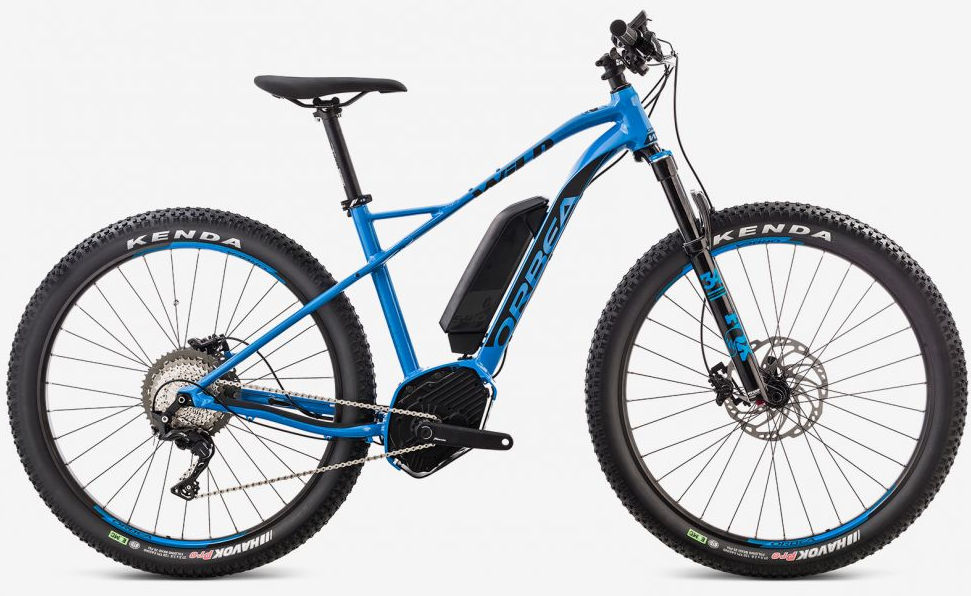

2016 Orbea Wild geometry
Full frame geometry for the 2016 Orbea Wild, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| M | 637 | 374 | 72.9 | 68 | 115 | 570 | 360 | 781 | 63 | 664 | 467 | 1124 |
| S | 637 | 348 | 72.9 | 68 | 115 | 544 | 340 | 781 | 63 | 638 | 467 | 1098 |
| L | 660 | 397 | 72.9 | 68 | 140 | 600 | 402 | 792 | 63 | 697 | 467 | 1157 |
All measurements in millimetres unless marked (°) for angles.
