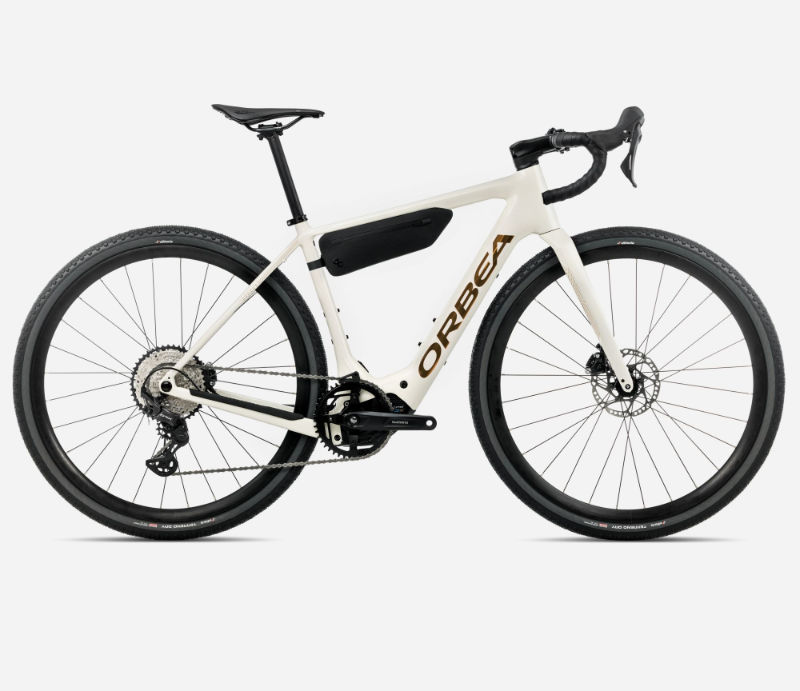

2026 Orbea Denna geometry
Full frame geometry for the 2026 Orbea Denna, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 531 | 390 | 74.5 | 70 | 110 | — | — | 78 | 425 | 1030 | 73 |
| S | 542 | 390 | 74 | 70.5 | 131 | — | — | 78 | 425 | 1033 | 70 |
| M | 558 | 395 | 73.5 | 71 | 152 | 558 | 471 | 78 | 425 | 1040 | 67 |
| L | 570 | 400 | 73.5 | 71 | 178 | — | — | 76 | 425 | 1054 | 67 |
| XL | 587 | 405 | 73 | 71.5 | 199 | — | — | 76 | 425 | 1061 | 63 |
| XXL | 599 | 410 | 73 | 72 | 220 | — | — | 76 | 425 | 1068 | 60 |
All measurements in millimetres unless marked (°) for angles.
