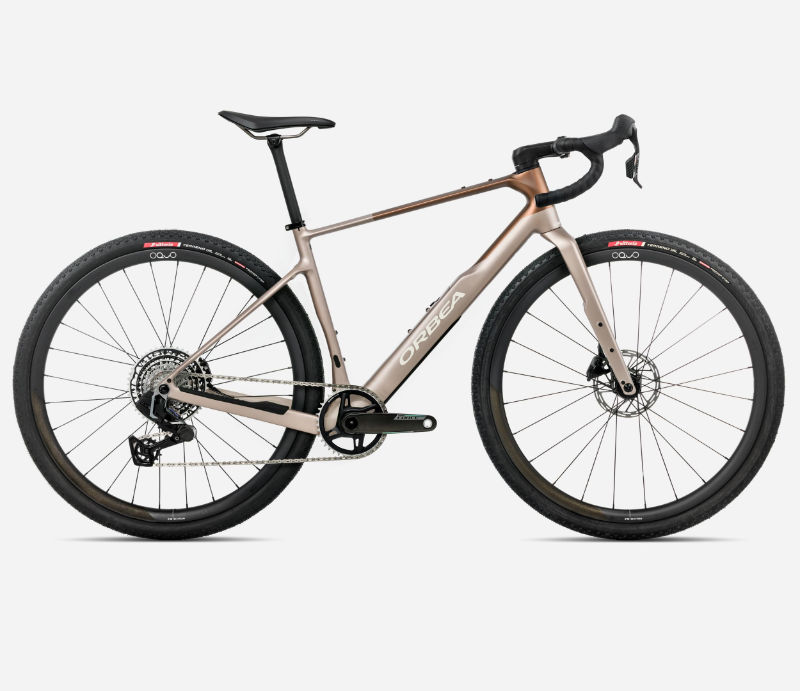

2025 Orbea Terra geometry
Full frame geometry for the 2025 Orbea Terra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 535 | 386 | 74 | 69 | 110 | 535 | 410 | 690 | 80 | 430 | 1031 | 45 | 82.7 |
| S | 558 | 392 | 74 | 69.5 | 133 | 547 | 440 | 717 | 80 | 430 | 1041 | 45 | 79.5 |
| M | 580 | 400 | 74 | 70 | 154 | 561 | 470 | 743 | 80 | 430 | 1052 | 45 | 76.2 |
| L | 602 | 406 | 74 | 70.5 | 175 | 573 | 505 | 772 | 80 | 430 | 1061 | 45 | 73 |
| XL | 625 | 412 | 74 | 70.8 | 198 | 585 | 540 | 801 | 80 | 430 | 1072 | 45 | 71.4 |
| XXL | 645 | 417 | 74 | 71 | 218 | 596 | 575 | 828 | 80 | 430 | 1081 | 45 | 69.8 |
All measurements in millimetres unless marked (°) for angles.
