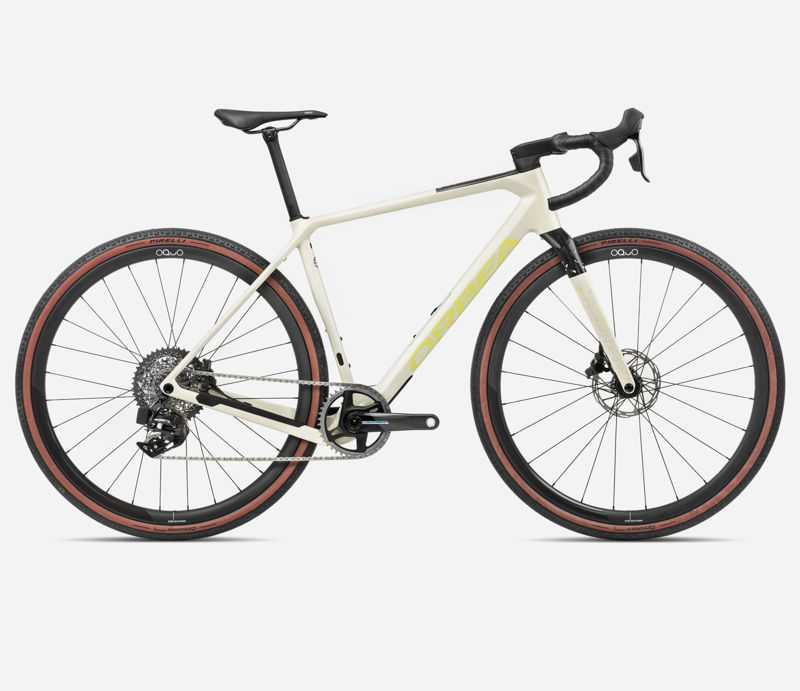

2023 Orbea Terra geometry
Full frame geometry for the 2023 Orbea Terra, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 526 | 375 | 74 | 70 | 110 | 526 | 405 | 713 | 78 | 420 | 1009 | 66 |
| S | 548 | 382 | 74 | 70.5 | 131 | 539 | 438 | 746 | 78 | 420 | 1019 | 62 |
| M | 570 | 389 | 73.5 | 71 | 152 | 558 | 471 | 768 | 78 | 420 | 1029 | 59 |
| L | 592 | 395 | 73.5 | 71 | 178 | 570 | 504 | 798 | 76 | 420 | 1044 | 59 |
| XL | 614 | 402 | 73 | 71.5 | 199 | 590 | 537 | 825 | 76 | 420 | 1053 | 56 |
| XXL | 636 | 409 | 73 | 72 | 220 | 603 | 570 | 853 | 76 | 420 | 1062 | 53 |
All measurements in millimetres unless marked (°) for angles.
